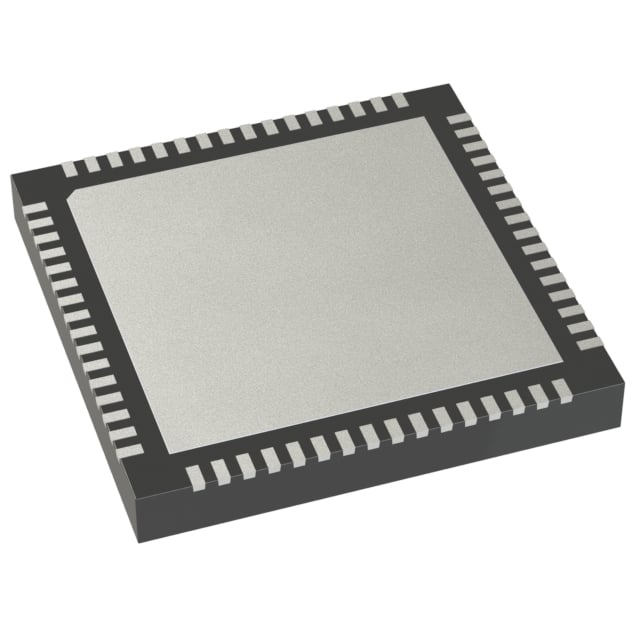

LMK5C22212ARGCT TI Clock Generator | 64-VQFN (9x9) | 12 Outputs, Jitter < 100 fs

Product Overview

The LMK5C22212ARGCT is a high-performance clock generator from Texas Instruments, designed for demanding applications requiring ultra-low jitter and multiple output frequencies. Housed in a compact 64-VQFN (9x9 mm) package, this device integrates a fractional-N PLL with VCO to generate up to 12 differential or 24 single-ended clock outputs. It supports frequencies from 1 Hz to 1 GHz, with typical RMS jitter below 100 fs (12 kHz–20 MHz). The device operates from a 3.3V supply and includes advanced features like hitless reference switching, digital delay, and SYSREF generation for JEDEC JESD204B/C systems.

Detailed Technical Specifications

Key Features

• Ultra-low jitter: < 100 fs RMS (12 kHz–20 MHz)
• Fractional-N PLL with integrated VCO
• Up to 12 differential clock outputs (LVPECL, LVDS, HCSL, etc.)
• Hitless reference switching with phase build-out
• Digital delay and SYSREF generation for JESD204B/C
• Programmable output format and voltage
• On-chip non-volatile memory (NVM) for configuration

Target Applications

• 5G base stations (e.g., massive MIMO, remote radio units)
• Data center switches and routers (e.g., 400G Ethernet)
• Test and measurement equipment (e.g., oscilloscopes, signal generators)
• Wireless infrastructure (e.g., small cells, backhaul)
• Medical imaging systems (e.g., MRI, CT scanners)
• Automotive radar and ADAS (e.g., infotainment dashboards)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMK5C22212ARGCT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
