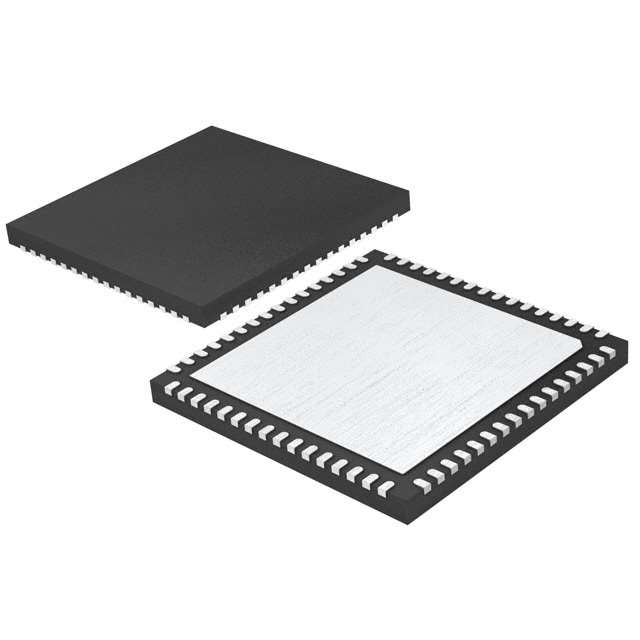

LMK5C33216RGCT TI Clock Generator | 64-VQFN (9x9) | 16 Outputs, 0.2ps RMS Jitter

Product Overview

The LMK5C33216RGCT is a high-performance clock generator from Texas Instruments, designed to provide ultra-low jitter and flexible frequency synthesis for demanding applications. Housed in a compact 64-VQFN (9x9 mm) package, this device integrates three independent PLLs and 16 differential outputs, supporting frequencies up to 3.2 GHz. It features advanced jitter cleaning and clock distribution capabilities, making it ideal for 5G infrastructure, data centers, and high-speed networking equipment.

Detailed Technical Specifications

Key Features

• Ultra-low jitter: 0.2 ps RMS (12 kHz – 20 MHz)
• Three independent PLLs with integer-N and fractional-N synthesis
• 16 differential outputs (LVPECL, LVDS, HCSL)
• Integrated VCOs up to 3.2 GHz
• Jitter cleaning and clock generation modes
• I2C/SPI programmable
• Hitless reference switching
• Small 9x9 mm QFN package

Target Applications

• 5G base stations (e.g., massive MIMO, remote radio units)
• Data center switches and routers (e.g., 400G Ethernet)
• Wireless infrastructure (e.g., small cells, backhaul)
• Test and measurement equipment (e.g., oscilloscopes, signal generators)
• Broadcast video (e.g., 4K/8K production switchers)
• Industrial automation (e.g., high-speed data acquisition)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMK5C33216RGCT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LMK5C33216RGCT 是德州儀器（TI）推出的一款高性能時鐘發生器，專為需要超低抖動和靈活頻率合成的應用而設計。該器件採用緊湊的 64-VQFN（9x9 mm）封裝，集成三個獨立 PLL 和 16 個差分輸出，支持高達 3.2 GHz 的頻率。它具有先進的抖動清除和時鐘分配功能，非常適合 5G 基礎設施、數據中心和高性能網絡設備。

詳細技術參數

核心特性

• 超低抖動：0.2 ps RMS（12 kHz – 20 MHz）
• 三個獨立 PLL，支持整數 N 和小數 N 合成
• 16 個差分輸出（LVPECL、LVDS、HCSL）
• 集成 VCO，最高 3.2 GHz
• 抖動清除和時鐘生成模式
• I2C/SPI 可編程
• 無中斷參考切換
• 小型 9x9 mm QFN 封裝

典型應用場景

• 5G 基站（例如大規模 MIMO、遠程射頻單元）
• 數據中心交換機和路由器（例如 400G 以太網）
• 無線基礎設施（例如小基站、回傳）
• 測試與測量設備（例如示波器、信號發生器）
• 廣播視頻（例如 4K/8K 製作切換台）
• 工業自動化（例如高速數據採集）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LMK5C33216RGCT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
