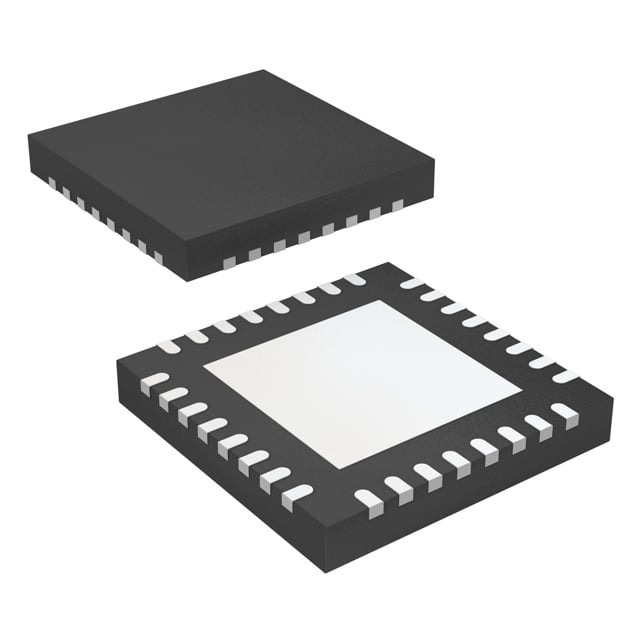

LMX2581SQ/NOPB TI PLL/VCO | 32-WQFN (5x5) | 50MHz-3.6GHz, -152dBc/Hz

Product Overview

The LMX2581SQ/NOPB from Texas Instruments is a high-performance, wideband frequency synthesizer with integrated VCO, covering a frequency range of 50 MHz to 3.6 GHz. It is designed for demanding applications requiring low phase noise and high flexibility. The device operates from a 3.3V supply and features a fractional-N PLL with programmable charge pump current and loop filter. The integrated VCO provides excellent phase noise performance of -152 dBc/Hz at 100 kHz offset (2.6 GHz carrier). The LMX2581 is available in a compact 32-pin WQFN (5x5 mm) package, making it suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• Integrated VCO with wide tuning range
• Fractional-N PLL with programmable charge pump
• Low phase noise: -152 dBc/Hz at 100 kHz offset
• Fast settling time: < 50 µs
• Digital lock detect and output mute
• 3-wire serial interface for programming
• Power-down mode for power saving

Target Applications

• 5G base station local oscillator (e.g., for massive MIMO transceivers)
• Wireless infrastructure (e.g., microwave backhaul links)
• Test and measurement equipment (e.g., spectrum analyzers)
• Radar systems (e.g., automotive radar modules)
• Satellite communications (e.g., VSAT terminals)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMX2581SQ/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
