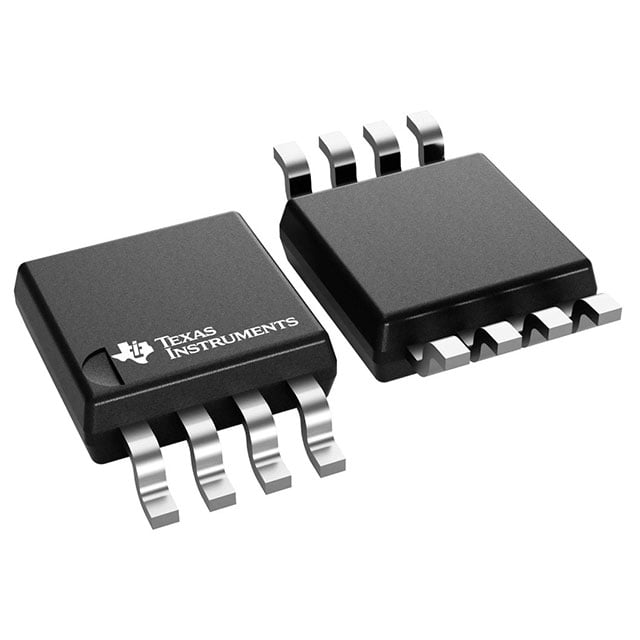

LP2986AIMM-3.0/NOPB TI LDO Regulator | 8-VSSOP | 3.0V Output, 200mA

Product Overview

The LP2986AIMM-3.0/NOPB is a high-performance, low-dropout (LDO) voltage regulator from Texas Instruments, offering a fixed output voltage of 3.0V with a maximum output current of 200mA. Housed in a compact 8-VSSOP package, this device is designed for noise-sensitive applications requiring excellent line and load regulation. With a dropout voltage of typically 120mV at 200mA load, it ensures efficient operation even under low input-to-output voltage differentials. The LP2986AIMM-3.0/NOPB features a low quiescent current of 600µA (typical) and a shutdown mode that reduces current to 0.01µA, making it ideal for battery-powered systems. It also includes output current limiting and thermal shutdown protection for robust performance.

Detailed Technical Specifications

Key Features

• Fixed 3.0V output with ±1.5% accuracy
• Low dropout voltage: 120mV at 200mA
• Low quiescent current: 600µA (typical)
• Shutdown mode with near-zero current (0.01µA)
• Excellent line and load regulation
• Low output noise: 30µVrms
• High PSRR: 65dB at 1kHz
• Output current limiting and thermal shutdown
• Stable with low-ESR ceramic capacitors (1µF)
• Wide operating temperature range: -40°C to +125°C

Target Applications

• 5G base station power management (e.g., for RF transceiver modules)
• Automotive dashboard displays and infotainment systems
• Portable medical devices (e.g., glucose monitors, pulse oximeters)
• Industrial sensor nodes and IoT modules
• Battery-powered equipment (e.g., wireless headsets, remote controls)
• Precision analog circuits requiring low noise supply

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LP2986AIMM-3.0/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LP2986AIMM-3.0/NOPB 是德州儀器（TI）推出的一款高性能低壓差線性穩壓器（LDO），提供固定的 3.0V 輸出電壓，最大輸出電流為 200mA。採用緊湊的 8-VSSOP 封裝，專為對噪聲敏感的應用而設計，具有出色的線性和負載調節能力。在 200mA 負載下，典型壓差電壓僅為 120mV，確保在低輸入輸出壓差下高效運行。LP2986AIMM-3.0/NOPB 的典型靜態電流為 600µA，關斷模式下電流降至 0.01µA，非常適合電池供電系統。此外，它還具有輸出電流限制和熱關斷保護功能，確保穩健運行。

詳細技術參數

核心特性

• 固定 3.0V 輸出，精度 ±1.5%
• 低壓差：200mA 時典型值 120mV
• 低靜態電流：典型值 600µA
• 關斷模式電流接近零（0.01µA）
• 優異的線性和負載調節率
• 低輸出噪聲：30µVrms
• 高電源抑制比：1kHz 時 65dB
• 輸出電流限制和熱關斷保護
• 可使用低 ESR 陶瓷電容（1µF）穩定工作
• 寬工作溫度範圍：-40°C 至 +125°C

典型應用場景

• 5G 基站電源管理（例如為射頻收發模塊供電）
• 汽車儀表盤顯示和資訊娛樂系統
• 便攜式醫療設備（如血糖儀、脈搏血氧儀）
• 工業傳感器節點和物聯網模塊
• 電池供電設備（如無線耳機、遙控器）
• 需要低噪聲電源的精密模擬電路

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LP2986AIMM-3.0/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
