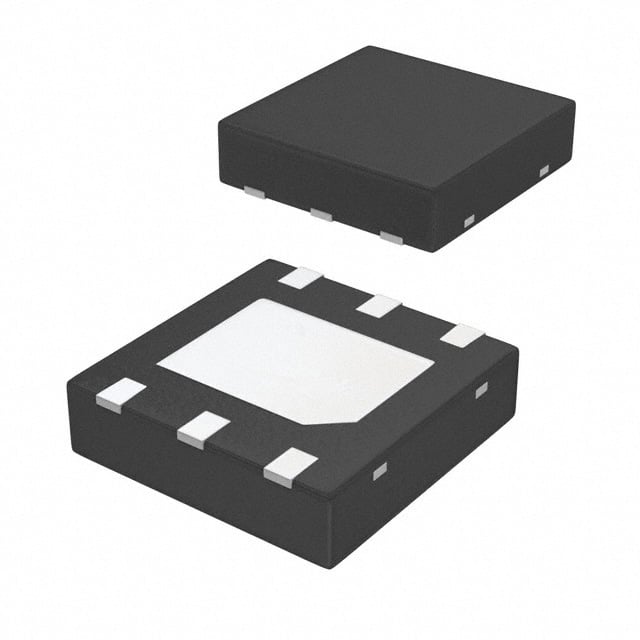

LP38691SD-1.8 TI LDO Regulator | 6-WSON(3x3) | 1.8V Fixed Output, 500mA

Product Overview

The LP38691SD-1.8 is a low-dropout (LDO) linear voltage regulator from Texas Instruments, offering a fixed output voltage of 1.8V with a maximum output current of 500mA. Housed in a compact 6-pin WSON package (3mm x 3mm), this device is designed for space-constrained applications requiring high accuracy and low noise. With a dropout voltage of only 120mV at full load, it ensures efficient operation even with minimal input-to-output voltage differential. The LP38691SD-1.8 features a low quiescent current of 30µA (typical) and a shutdown current of less than 1µA, making it ideal for battery-powered systems.

Detailed Technical Specifications

Key Features

• Fixed 1.8V output with ±2% accuracy
• Low dropout voltage: 120mV at 500mA
• Low quiescent current: 30µA typical
• Shutdown current <1µA
• Stable with ceramic output capacitors (1µF minimum)
• Overcurrent and thermal protection
• Small 6-pin WSON package (3mm x 3mm)

Target Applications

The LP38691SD-1.8 is suitable for a wide range of applications, including:

• 5G base stations: Powering RF transceivers and control logic requiring clean 1.8V rails.
• Automotive dashboards: Providing regulated supply for infotainment systems and sensor interfaces.
• Portable medical devices: Ensuring stable voltage for sensitive analog circuits.
• Industrial IoT sensors: Low-power operation extends battery life.
• Networking equipment: Powering FPGA and ASIC core voltages.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LP38691SD-1.8. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
