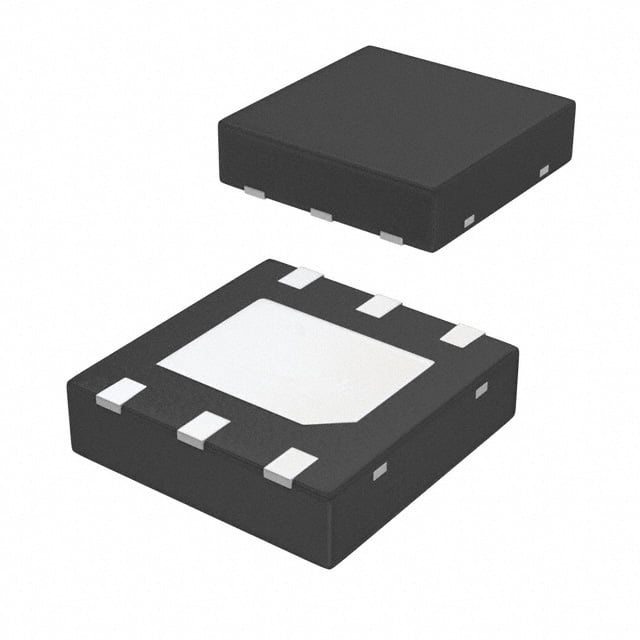

LP38693SDX-3.3/NOPB TI LDO Regulator | 6-WSON (3x3) | 3.3V Output, 500mA

Product Overview

The LP38693SDX-3.3/NOPB is a low-dropout (LDO) linear voltage regulator from Texas Instruments, offering a fixed output voltage of 3.3V with a maximum output current of 500mA. Housed in a compact 6-pin WSON package (3x3mm), it is designed for space-constrained applications requiring high accuracy and low noise. The device features a low dropout voltage of typically 120mV at full load, enabling efficient operation even when the input voltage is close to the output. With an enable pin for power sequencing and shutdown, it provides flexibility in power management. The LP38693SDX-3.3/NOPB is qualified for industrial and automotive applications, ensuring reliable performance over a wide temperature range.

Detailed Technical Specifications

Key Features

• Fixed 3.3V output with ±2% accuracy
• Low dropout voltage: 120mV at 500mA
• Low quiescent current: 55µA typical
• Enable pin for power sequencing and shutdown
• Thermal shutdown and current limit protection
• Stable with ceramic output capacitors (≥1µF)
• Wide operating temperature range: -40°C to +125°C
• Compact 6-WSON package (3x3mm) for space-saving designs

Target Applications

• 5G base stations: Powering RF transceivers and control logic
• Automotive dashboard: Supply for infotainment and display modules
• Industrial sensors: Clean power for analog front-ends
• Portable devices: Battery-powered equipment requiring low dropout
• Medical devices: Low-noise power for patient monitoring systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LP38693SDX-3.3/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LP38693SDX-3.3/NOPB 是德州儀器（TI）推出的一款低壓差線性穩壓器（LDO），提供固定的 3.3V 輸出電壓，最大輸出電流為 500mA。該器件採用緊湊的 6 引腳 WSON 封裝（3x3mm），專為空間受限且需要高精度和低噪聲的應用而設計。其典型壓差電壓僅為 120mV（滿載時），即使在輸入電壓接近輸出電壓時也能高效運行。通過使能引腳實現電源排序和關機功能，為電源管理提供了靈活性。LP38693SDX-3.3/NOPB 符合工業和汽車應用認證，可在寬溫度範圍內提供可靠性能。

詳細技術參數

核心特性

• 固定 3.3V 輸出，精度 ±2%
• 低壓差：120mV @ 500mA
• 低靜態電流：典型值 55µA
• 使能引腳，支持電源排序和關機
• 熱關斷和電流限制保護
• 可使用陶瓷輸出電容器（≥1µF）穩定工作
• 寬工作溫度範圍：-40°C 至 +125°C
• 緊湊的 6-WSON 封裝（3x3mm），節省空間

典型應用場景

• 5G 基站：為射頻收發器和控制邏輯供電
• 汽車儀表盤：為信息娛樂和顯示模塊供電
• 工業傳感器：為模擬前端提供乾淨電源
• 便攜設備：需要低壓差的電池供電設備
• 醫療設備：為患者監護系統提供低噪聲電源

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LP38693SDX-3.3/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
