LP5523TMX/NOPB TI LED Driver | 25-DSBGA | 3x3 Matrix, I2C, 256 Steps

Product Overview

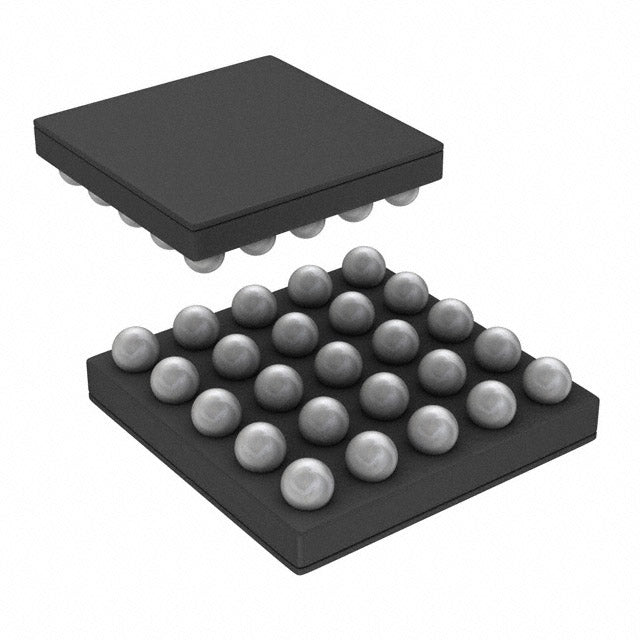

The LP5523TMX/NOPB is a high-performance LED driver from Texas Instruments, designed for portable applications requiring independent control of multiple LEDs. It features a 3x3 programmable LED matrix with 256 brightness steps per LED, enabling smooth dimming and complex lighting patterns. The device communicates via I2C interface and operates from a 2.7V to 5.5V supply. Housed in a compact 25-bump DSBGA package (2.0mm x 2.0mm), it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Independent control of 9 LEDs with 256-step PWM dimming
• I2C-compatible interface for easy integration
• Low quiescent current (typical 1 µA in shutdown)
• Built-in pattern generation for autonomous operation
• Over-temperature protection
• Small footprint package saves board space

Target Applications

• Smartphone notification LEDs (e.g., Samsung Galaxy S series)
• Portable gaming consoles (e.g., Nintendo Switch)
• Wearable devices (e.g., smartwatches)
• IoT control panels (e.g., Amazon Echo)
• Automotive dashboard indicators
• 5G base station status indicators
