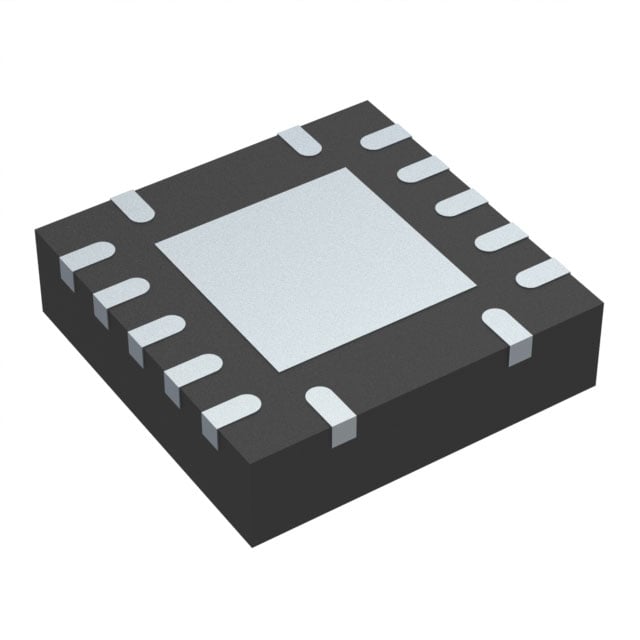

LSF0204DRGYR TI Level Translator | 14-VQFN (3.5x3.5) | 4-bit, 1.0-5.5V

Product Overview

The LSF0204DRGYR from Texas Instruments is a 4-bit bidirectional multi-voltage level translator designed for open-drain and push-pull applications. It operates over a wide voltage range from 1.0V to 5.5V on both the A and B ports, making it ideal for interfacing between different logic levels in mixed-voltage systems. The device features a 14-pin VQFN package (3.5mm x 3.5mm) with a compact footprint, suitable for space-constrained designs. It supports high-speed data rates up to 100 MHz and provides excellent signal integrity with low propagation delay.

Detailed Technical Specifications

Key Features

• Bidirectional voltage translation without direction pin
• Wide voltage range: 1.0V to 5.5V on both ports
• High-speed operation: up to 100 MHz
• Low propagation delay: typical 1.5 ns
• Small package: 14-VQFN (3.5mm x 3.5mm)
• Supports open-drain and push-pull applications
• ESD protection: HBM ±8 kV, CDM ±2 kV
• Industrial temperature range: -40°C to +125°C

Target Applications

The LSF0204DRGYR is ideal for various applications requiring voltage level translation, such as:

• 5G base stations: Interfacing between 1.8V baseband processors and 3.3V RF front-end modules
• Automotive dashboard: Connecting 3.3V microcontrollers to 5V sensors and displays
• Industrial automation: Level shifting for PLC I/O modules and sensor interfaces
• Consumer electronics: Smartphones, tablets, and wearables for battery management and display interfaces
• Networking equipment: Routers and switches for logic level conversion between different ICs
