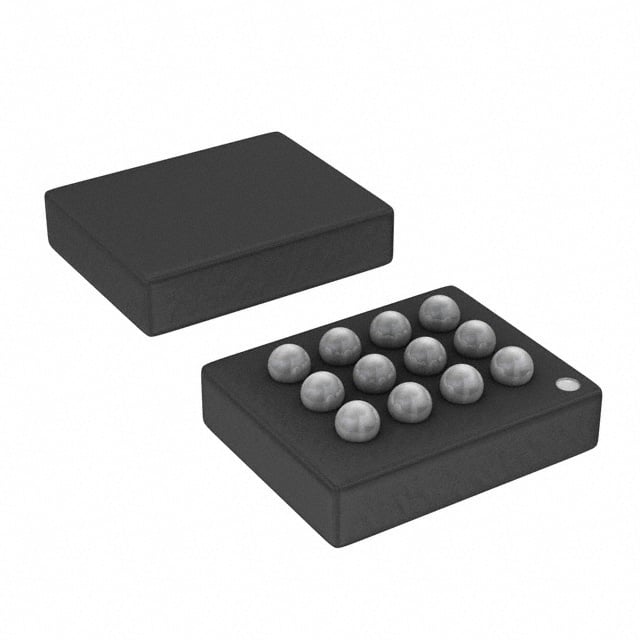

LSF0204DYZPR TI Level Translator | 12-DSBGA | 4-Bit, 1.0-5.5V

Product Overview

The LSF0204DYZPR is a 4-bit bidirectional voltage-level translator from Texas Instruments, designed for open-drain and push-pull applications. It operates over a wide voltage range from 1.0V to 5.5V on both the A and B ports, making it ideal for multi-voltage systems. The device features automatic direction sensing, eliminating the need for a direction control pin. Housed in a compact 12-DSBGA package (1.6mm x 1.6mm), it is suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• Bidirectional voltage translation without direction pin
• Supports open-drain and push-pull drivers
• Low quiescent current (typical 2 µA)
• High data rate up to 100 MHz
• Small package saves board space
• Wide operating temperature range

Target Applications

• 5G base station control interfaces (e.g., FPGA to RF transceiver)
• Automotive dashboard display modules (e.g., TFT-LCD panel interface)
• Industrial sensor networks (e.g., I2C/SMBus level shifting)
• Portable electronics (e.g., smartphone accessory communication)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LSF0204DYZPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
