MAX3232IDBR TI RS-232 Transceiver | 16-SSOP | 3V-5.5V, 250kbps

Product Overview

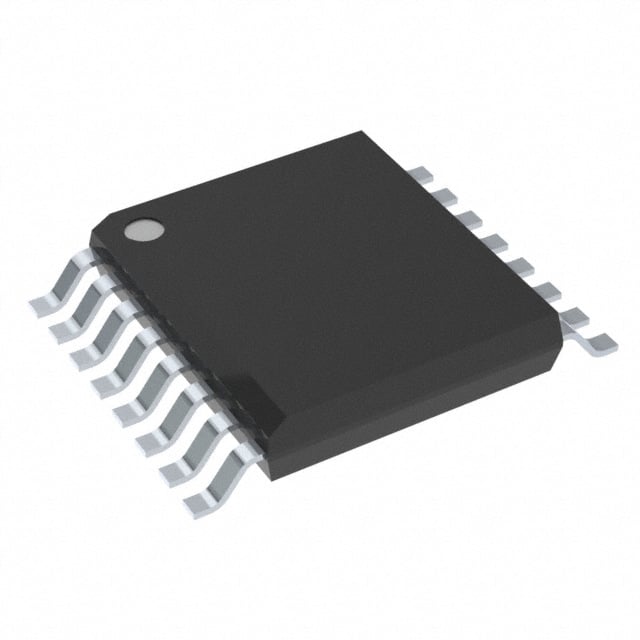

The MAX3232IDBR from Texas Instruments is a dual RS-232 line driver/receiver with a ±15-kV ESD protection (HBM) on the RS-232 pins. It operates from a single 3V to 5.5V power supply, making it ideal for portable and space-constrained applications. The device features a proprietary low-dropout transmitter output stage that delivers true RS-232 performance from a 3V supply using a dual charge-pump architecture. The charge pumps require only four small 0.1µF capacitors for operation. The MAX3232IDBR is offered in a 16-pin SSOP package, ensuring a compact footprint for modern designs.

Detailed Technical Specifications

Key Features

• Operates from a single 3V to 5.5V supply
• Two drivers and two receivers
• ±15-kV ESD protection on RS-232 pins
• Low-power consumption: 1 mA typical supply current
• Data rate up to 250 kbps
• Requires only four 0.1µF external capacitors
• Compliant with TIA/EIA-232-F and ITU V.28 standards
• Available in 16-pin SSOP package

Target Applications

• 5G base station control interfaces
• Automotive dashboard display modules
• Portable medical devices (e.g., patient monitors)
• Industrial automation PLCs
• Point-of-sale (POS) terminals
• GPS receivers and telematics

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for MAX3232IDBR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
