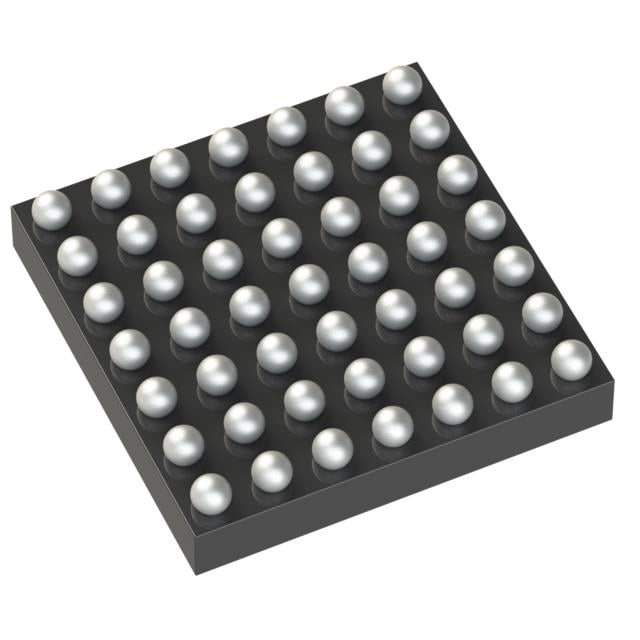

MSP430F2330IYFFR TI 16-bit MCU | 49-DSBGA (2.8x2.8) | 16MHz, 8KB Flash, 1KB RAM

Product Overview

The MSP430F2330IYFFR is a 16-bit ultra-low-power microcontroller from Texas Instruments, part of the MSP430F2xx family. It features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The device is designed for battery-powered and portable applications, offering five low-power modes to extend battery life. With a wide operating voltage range (1.8V to 3.6V) and a temperature range of -40°C to +85°C, it is suitable for industrial and consumer applications. The package is a 49-ball DSBGA (2.8mm x 2.8mm) for space-constrained designs.

Detailed Technical Specifications

Key Features

• Ultra-low power consumption: 0.1 µA RAM retention, 0.7 µA standby mode
• Wake-up from standby in less than 1 µs
• 16-bit RISC architecture with 62.5 ns instruction cycle time
• Built-in 16-bit timers with capture/compare
• 10-bit ADC with internal reference
• Brown-out reset (BOR) and supply voltage supervisor (SVS)
• Serial communication: UART, SPI, I2C
• Up to 32 I/O pins

Target Applications

The MSP430F2330IYFFR is ideal for applications requiring low power and small footprint. Specific examples include:

• 5G base station monitoring and control modules
• Automotive dashboard sensors and displays
• Portable medical devices like glucose meters and pulse oximeters
• Smart home sensors (temperature, humidity, motion)
• Battery management systems in IoT devices

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for MSP430F2330IYFFR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

MSP430F2330IYFFR 是德州儀器（TI）的一款16位超低功耗微控制器，屬於MSP430F2xx系列。它採用強大的16位RISC CPU、16位寄存器和常量發生器，實現最高代碼效率。該器件專為電池供電和便攜式應用設計，提供五種低功耗模式以延長電池壽命。工作電壓範圍寬（1.8V至3.6V），溫度範圍-40°C至+85°C，適用於工業和消費類應用。封裝為49球DSBGA（2.8mm x 2.8mm），適合空間受限的設計。

詳細技術參數

核心特性

• 超低功耗：RAM保持0.1 µA，待機0.7 µA
• 從待機喚醒時間小於1 µs
• 16位RISC架構，指令週期62.5 ns
• 內置16位定時器，帶捕獲/比較
• 10位ADC，帶內部參考
• 欠壓復位（BOR）和電源電壓監控（SVS）
• 串行通信：UART, SPI, I2C
• 最多32個I/O引腳

典型應用場景

MSP430F2330IYFFR 非常適合需要低功耗和小尺寸的應用。具體示例包括：

• 5G基站監控與控制模塊
• 汽車儀表板傳感器和顯示器
• 便攜式醫療設備，如血糖儀和脈搏血氧儀
• 智能家居傳感器（溫度、濕度、運動）
• 物聯網設備中的電池管理系統

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 MSP430F2330IYFFR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
