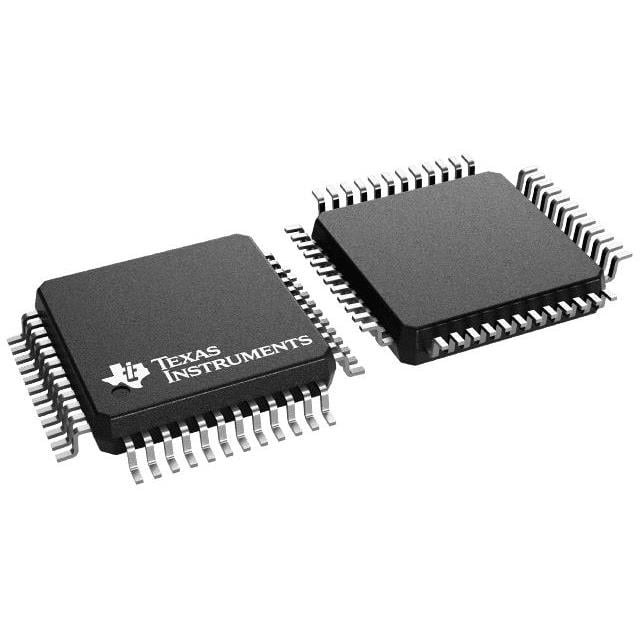

MSP430F5509IPT TI Microcontroller | 48-LQFP (7x7) | 16-bit, 25MHz, 64KB Flash

Product Overview

The MSP430F5509IPT is a 16-bit ultra-low-power microcontroller from Texas Instruments, part of the MSP430F5xx family. It features a powerful 16-bit RISC CPU, 64KB of flash memory, 4KB of RAM, and a rich set of peripherals including USB 2.0, multiple serial interfaces, and analog modules. Housed in a compact 48-pin LQFP package (7x7 mm), it is ideal for space-constrained applications requiring low power consumption and high performance.

Detailed Technical Specifications

Key Features

• Ultra-low power consumption with multiple low-power modes
• Integrated USB 2.0 PHY and controller for direct USB connectivity
• High-performance 16-bit CPU with hardware multiplier
• Rich analog integration: 12-bit ADC, comparator, and DMA
• Flexible clock system with internal DCO and external crystal support
• Up to 31 GPIO pins with interrupt capability
• Enhanced serial communication with I2C, SPI, and UART
• Brown-out reset and power-on reset for reliable operation

Target Applications

• Industrial sensor nodes and data loggers
• Portable medical devices (e.g., glucose meters, pulse oximeters)
• Smart meters and energy harvesting systems
• USB-based peripherals (e.g., dongles, adapters)
• Building automation (e.g., smart thermostats, lighting controls)
• Consumer electronics (e.g., remote controls, wearable devices)
