MSP430F5509IRGZT TI Microcontroller | 48-VQFN (7x7) | 16-bit, 25MHz, 64KB Flash

Product Overview

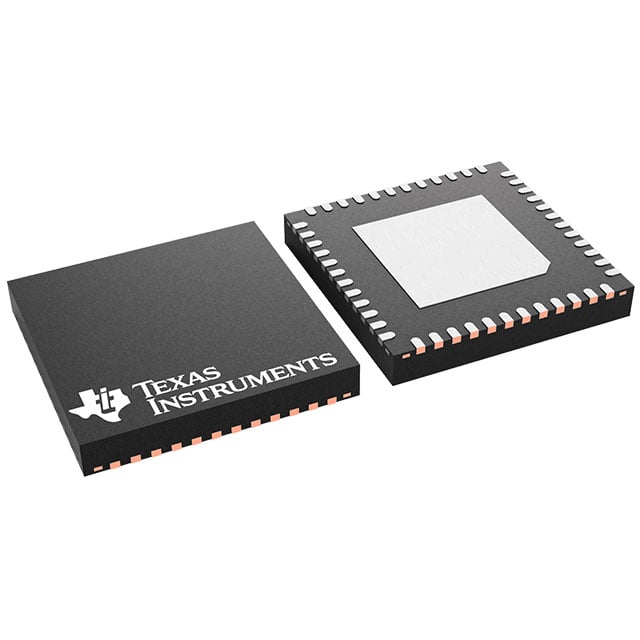

The MSP430F5509IRGZT is a 16-bit ultra-low-power microcontroller from Texas Instruments, part of the MSP430F5xx family. It features a powerful 16-bit RISC CPU, 64KB of flash memory, 4KB of RAM, and a rich set of peripherals including USB 2.0, multiple serial interfaces, and analog modules. Housed in a compact 48-pin VQFN package (7x7 mm), it is ideal for space-constrained applications requiring low power consumption and high performance.

Detailed Technical Specifications

Key Features

• Ultra-low power consumption: Active mode 230 µA/MHz, Standby 1.1 µA (RTC mode)
• Integrated USB 2.0 PHY and controller for direct PC connectivity
• Multiple serial communication modules (I2C, SPI, UART) for flexible interfacing
• 12-bit SAR ADC with internal reference and sample-and-hold
• Brown-out reset and power-on reset for reliable operation
• Up to 31 general-purpose I/O pins with interrupt capability
• 16-bit and 32-bit timers with PWM support
• Hardware multiplier for enhanced math performance
• On-chip oscillator and DCO for clock generation

Target Applications

The MSP430F5509IRGZT is well-suited for a wide range of applications, including:

• Industrial sensor nodes and data loggers
• Portable medical devices (e.g., blood glucose meters, pulse oximeters)
• Smart grid and energy monitoring equipment
• Consumer electronics (e.g., remote controls, smart home devices)
• USB-based peripherals (e.g., dongles, adapters)
• Automotive body control modules (e.g., window lift, seat control)
• 5G base station monitoring and control units
• Dashboard instrumentation for electric vehicles
