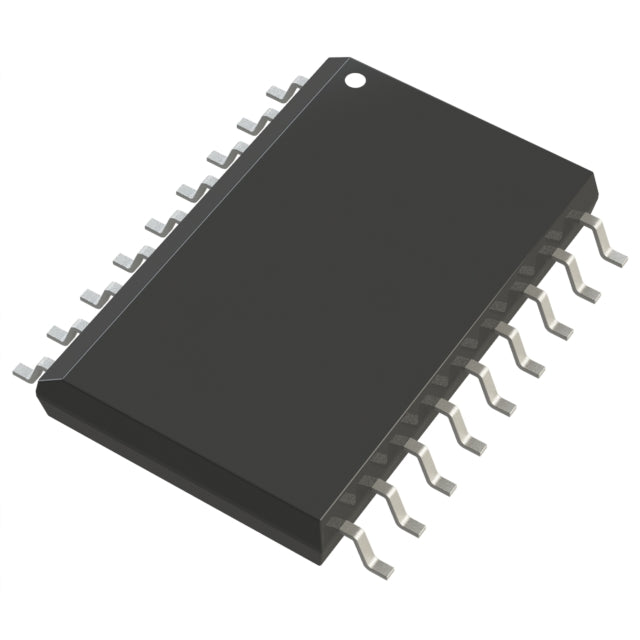

PCA6107DWR TI I2C I/O Expander | 18-SOIC | 16-bit, 2.3V-5.5V

Product Overview

The PCA6107DWR from Texas Instruments is a 16-bit I2C-bus and SMBus I/O expander designed for 2.3-V to 5.5-V VCC operation. It provides general-purpose remote I/O expansion for most microcontroller families via the I2C interface (serial clock (SCL) and serial data (SDA)). The device features an interrupt output (INT) that can be connected to the interrupt logic of the microcontroller, sending an interrupt signal when any input state differs from its corresponding input port register state. The PCA6107DWR has three address pins (A0, A1, A2) allowing up to eight devices on the same bus, and it supports hot insertion. The device is available in a compact 18-pin SOIC package.

Detailed Technical Specifications

Key Features

• 16-bit bidirectional I/O expander
• I2C-bus and SMBus compatible
• Low standby current consumption
• Open-drain active-low interrupt output
• Three hardware address pins allow up to eight devices
• Input/output polarity inversion register
• Internal power-on reset
• No glitch on power-up
• Supports hot insertion
• Package: 18-pin SOIC (DWR)

Target Applications

• 5G base station control boards (e.g., for monitoring fan status, reset signals)
• Automotive dashboard control (e.g., reading switch inputs, controlling LEDs)
• Industrial PLC I/O expansion
• Server and telecom equipment (e.g., blade servers for GPIO expansion)
• Consumer electronics (e.g., smart home hubs for sensor input)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for PCA6107DWR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
