PCA9545AZQNR TI Multiplexer IC | 20-BGAMICROSTARJUNIOR（4X3） | 4-Channel, I2C

Product Overview

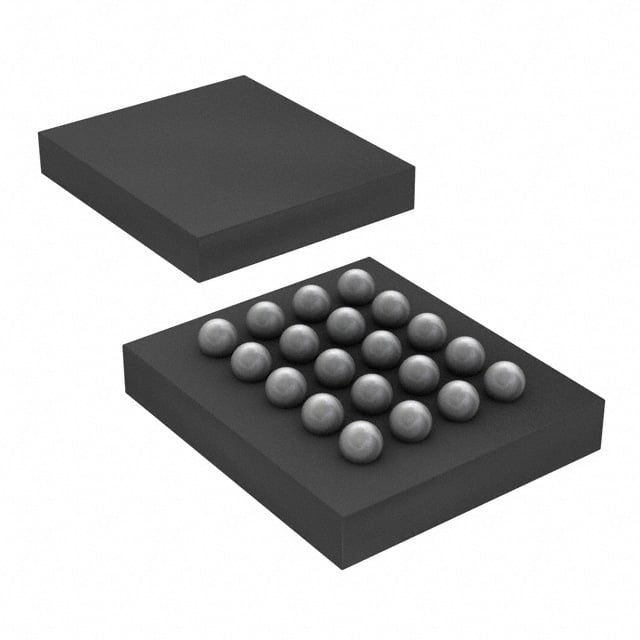

The PCA9545AZQNR is a 4-channel I2C-bus multiplexer from Texas Instruments, designed to provide selective communication between a master I2C device and multiple slave devices. It allows voltage level translation between 1.8V, 2.5V, 3.3V, and 5V buses, making it ideal for multi-voltage systems. Housed in a compact 20-ball BGA MICROSTAR JUNIOR package (4x3 mm), it offers low power consumption and high reliability for space-constrained applications.

Detailed Technical Specifications

Key Features

• 4-channel I2C-bus multiplexer with active-low reset input
• Voltage level translation between different I2C bus voltages
• Low standby current (1.5 µA typical)
• Power-up with all channels deselected
• Noise filter on SCL/SDA inputs
• Supports hot insertion
• Small footprint package (4x3 mm BGA)

Target Applications

• 5G base station control boards (e.g., for managing multiple sensor modules)
• Automotive dashboard display systems (e.g., connecting multiple I2C peripherals)
• Industrial automation PLC modules (e.g., multiplexing I2C temperature sensors)
• Consumer electronics like smart speakers (e.g., audio codec and touch controller selection)
• Medical devices (e.g., patient monitoring systems with multiple I2C sensors)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for PCA9545AZQNR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
