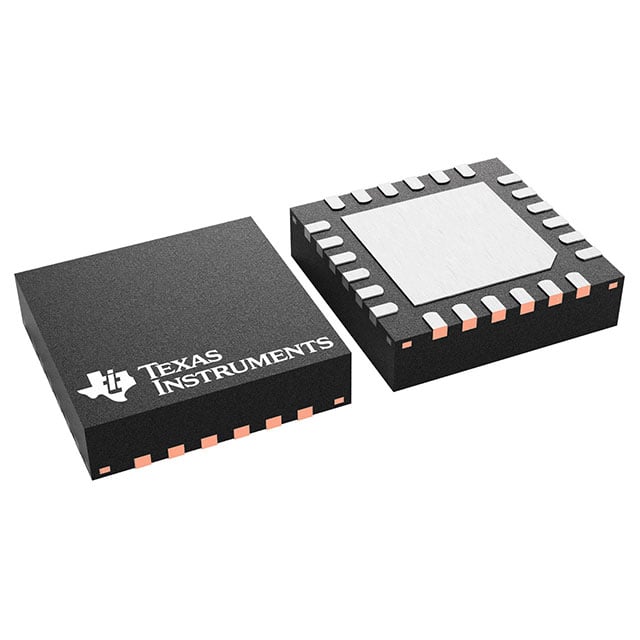

PCF8575CRGER TI I2C I/O Expander | 24-VQFN (4x4) | 16-bit, 2.3V-5.5V

Product Overview

The PCF8575CRGER from Texas Instruments is a 16-bit I/O expander for I2C-bus applications, providing general-purpose remote I/O expansion for most microcontroller families. It features a 16-bit quasi-bidirectional input/output (I/O) port, including latched outputs with high-current drive capability for directly driving LEDs. The device operates from a supply voltage range of 2.3 V to 5.5 V and supports I2C bus speeds up to 400 kHz. The low standby current consumption makes it ideal for battery-powered applications. The PCF8575CRGER is available in a compact 24-pin VQFN (4x4 mm) package, suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• 16-bit quasi-bidirectional I/O ports
• I2C-bus interface with three hardware address pins (up to 8 devices on bus)
• Open-drain active-low interrupt output
• High-current drive capability (25 mA per pin)
• Low standby current (1 µA typical)
• Power-on reset with no glitch on I/O pins
• 5 V tolerant I/O pins in power-down mode
• Schmitt-trigger action for slow input transitions

Target Applications

• 5G base station control and monitoring (e.g., fan speed control, status LED indication)
• Automotive dashboard switches and indicator lights
• Industrial PLC I/O expansion modules
• Smart home devices (e.g., smart thermostat button matrix)
• Portable medical equipment (e.g., glucose meter keypad)
• Server/telecom equipment front panel control

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for PCF8575CRGER. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
