PCI2050GHK TI PCI-to-PCI Bridge | 209-BGAMICROSTAR (16x16) | 32-bit, 66MHz

Product Overview

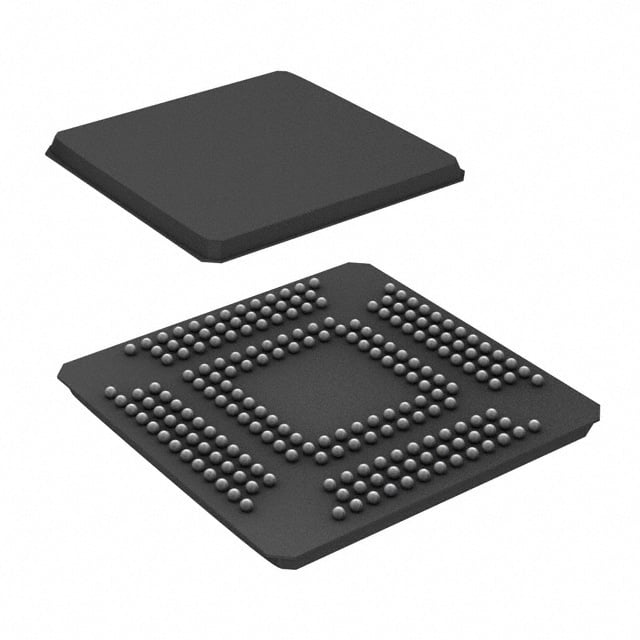

The PCI2050GHK is a high-performance PCI-to-PCI bridge from Texas Instruments, designed to provide a seamless interface between two independent PCI buses. It supports 32-bit, 66MHz operation and is housed in a compact 209-ball BGA MICROSTAR package (16x16mm). This bridge enables system designers to expand the number of PCI slots or isolate bus segments for improved performance and reliability. With advanced power management and hot-plug capability, the PCI2050GHK is ideal for embedded systems, telecommunications, and industrial applications.

Detailed Technical Specifications

Key Features

• 32-bit, 66MHz PCI-to-PCI bridge
• Compliant with PCI Local Bus Specification Rev 2.3
• Supports up to 4 secondary bus masters
• Hot-plug and hot-swap capable
• Advanced power management (ACPI 1.0)
• Compact 209-ball BGA MICROSTAR package (16x16mm)
• Low power consumption (1.5W typical)
• Glueless interface to most PCI devices
• Programmable base address registers
• JTAG boundary scan support

Target Applications

• 5G base stations: Used to expand PCI slots for baseband processing cards
• Automotive dashboards: Bridge between main processor and peripheral controllers
• Industrial PCs: Isolate high-speed PCI segments for reliability
• Network routers/switches: Connect multiple network interface cards
• Medical imaging systems: Interface with high-speed data acquisition cards
• Telecommunications equipment: Bridge for line cards and control processors

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for PCI2050GHK. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
