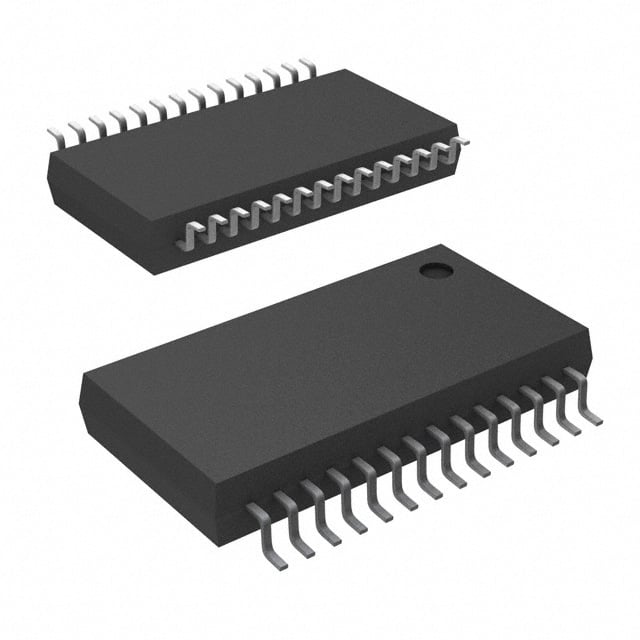

PCM1804DBG4 TI Audio ADC | 28-SSOP | 24-Bit, 96kHz, 111dB SNR

Product Overview

The PCM1804DBG4 is a high-performance, single-chip, stereo analog-to-digital converter (ADC) from Texas Instruments. It supports 24-bit resolution and sampling rates up to 96 kHz, delivering a dynamic range of 111 dB (A-weighted) and a signal-to-noise ratio (SNR) of 111 dB. The device integrates a delta-sigma modulator with a decimation filter, providing excellent audio quality for professional and consumer audio applications. Housed in a compact 28-SSOP package, the PCM1804DBG4 is designed for easy integration into space-constrained designs.

Detailed Technical Specifications

Key Features

• 24-bit delta-sigma stereo ADC
• Sampling rates: 8 kHz to 96 kHz
• 111 dB dynamic range and SNR
• Low THD+N: -93 dB
• Differential analog inputs
• On-chip decimation filter with sharp roll-off
• System clock: 256/384/512/768 fS
• Supports I2S and left-justified audio data formats
• Power-down and reset functions
• Single 5-V analog supply and 3.3-V digital supply

Target Applications

• Professional audio mixing consoles (e.g., Yamaha MG series)
• Digital audio workstations (e.g., Focusrite Scarlett interfaces)
• Automotive infotainment systems (e.g., Tesla Model S audio system)
• High-end consumer audio equipment (e.g., Denon AVR receivers)
• 5G base station audio processing units
• Industrial audio recording and monitoring systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for PCM1804DBG4. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
