Product Overview

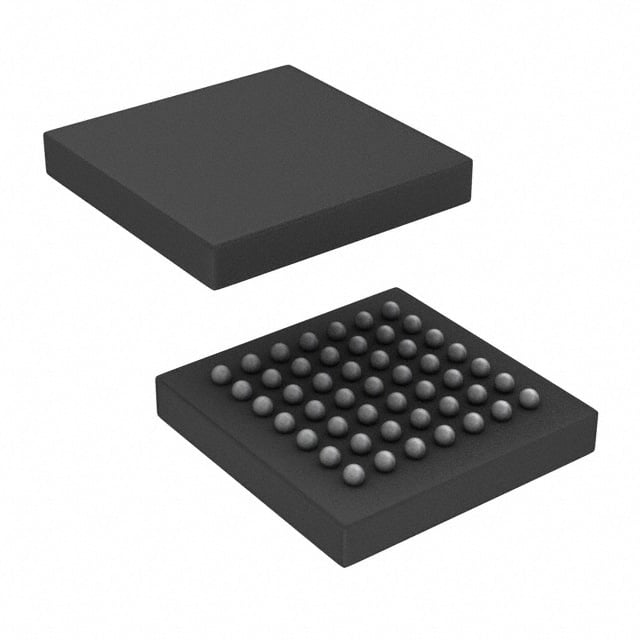

The SCAN921226HSM/NOPB is a 10-bit serializer from Texas Instruments, designed for high-speed serial data transmission over LVDS (Low-Voltage Differential Signaling) interfaces. It integrates IEEE 1149.1 (JTAG) boundary scan for enhanced testability. Housed in a compact 49-NFBGA (7x7 mm) package, it supports data rates from 10 MHz to 66 MHz, making it ideal for applications requiring reduced cable count and EMI.

Detailed Technical Specifications

Parameter Value
Supply Voltage 3.0V to 3.6V
Data Rate 10 MHz to 66 MHz
Input Type 10-bit parallel CMOS/TTL
Output Type LVDS (ANSI TIA/EIA-644)
Number of Channels 1 serializer
Package 49-NFBGA (7x7 mm)
Operating Temperature -40°C to +85°C
Power Dissipation Typ. 150 mW at 66 MHz
ESD Rating ±8 kV (HBM)
Features IEEE 1149.1 JTAG, PLL, internal termination

Key Features

  • 10-bit parallel-to-serial conversion with LVDS output
  • Integrated PLL for clock generation and jitter reduction
  • IEEE 1149.1 boundary scan for board-level testing
  • Low power consumption: 150 mW typical at 66 MHz
  • Small footprint: 49-ball NFBGA (7x7 mm)
  • Wide operating temperature range: -40°C to +85°C
  • Internal 100Ω termination resistors for LVDS
  • Flow-through pinout for easy PCB layout

Target Applications

  • 5G base station backplane serialization
  • Automotive dashboard display links
  • Industrial camera data transmission
  • Medical imaging equipment
  • Video surveillance systems
  • Test and measurement equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SCAN921226HSM/NOPB. Our core advantages include:

  • 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
  • In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
  • HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
  • Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
  • BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

  • 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
  • RoHS Compliant: All electronic components comply with international environmental and safety standards.
  • Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
