SCANSTA101SM/NOPB TI IEEE 1149.1 Testability IC | 49-NFBGA (7x7) | 5V, 50MHz

Product Overview

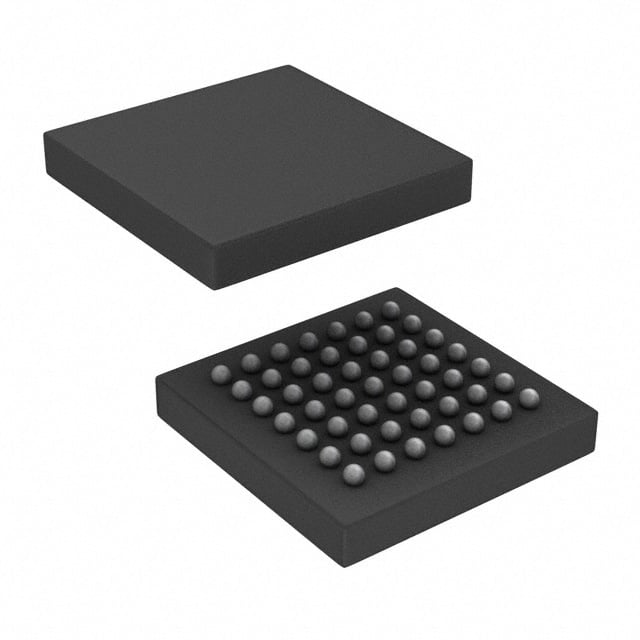

The SCANSTA101SM/NOPB from Texas Instruments is a high-performance IEEE 1149.1 (JTAG) testability bus controller designed for automated test equipment and boundary-scan applications. It provides a complete solution for testing complex digital systems, enabling efficient board-level and system-level testing. Housed in a compact 49-ball NFBGA (7x7 mm) package, this device operates from a single 5V supply and supports test clock frequencies up to 50 MHz. The SCANSTA101SM/NOPB is RoHS compliant and lead-free (NOPB), making it suitable for environmentally conscious designs.

Detailed Technical Specifications

Key Features

• IEEE 1149.1 compliant JTAG test access port controller
• Supports boundary-scan testing for digital ICs and PCBs
• High-speed operation up to 50 MHz
• Single 5V supply operation
• Compact 49-ball NFBGA package for space-constrained designs
• Lead-free and RoHS compliant
• Low power consumption
• Integrated TAP controller with full JTAG signal support

Target Applications

• Automated test equipment (ATE) for 5G base station PCBs
• Boundary-scan testing in automotive infotainment systems (e.g., dashboard controllers)
• In-system programming and testing of FPGAs and CPLDs
• Manufacturing test for networking equipment (routers, switches)
• Diagnostic and maintenance systems for industrial control

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SCANSTA101SM/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
