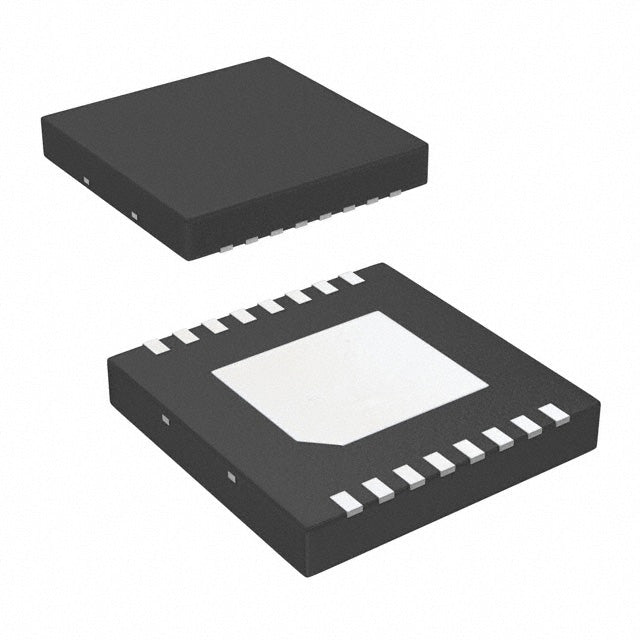

SCANSTA476TSD/NOPB TI IEEE 1149.1 JTAG | 16-WSON (5X5) | 1.8V-5V, 8 TAP Ports

Product Overview

The SCANSTA476TSD/NOPB from Texas Instruments is a high-performance IEEE 1149.1 (JTAG) bus switch designed for multi-drop test access port (TAP) management. It enables seamless integration of multiple JTAG-compliant devices in a single scan chain, reducing test time and complexity. Housed in a compact 16-WSON (5x5 mm) package, this device supports a wide voltage range from 1.8V to 5V, making it suitable for mixed-voltage systems. With eight TAP ports, it provides flexible routing for boundary-scan testing in complex digital designs.

Detailed Technical Specifications

Key Features

• Eight independent TAP ports for multi-drop JTAG networks
• Wide supply voltage range: 1.8V to 5V
• Low power consumption: 10 µA standby current
• Compact 16-WSON package (5x5 mm) for space-constrained designs
• Compliant with IEEE 1149.1 standard
• Supports hot insertion without system disruption
• Industrial temperature range: -40°C to +85°C

Target Applications

• 5G base station control boards for JTAG-based testing of FPGAs and ASICs
• Automotive dashboard systems for boundary-scan testing of infotainment modules
• Industrial automation PLCs for in-system programming and diagnostics
• Networking equipment (routers, switches) for multi-device JTAG chain management
• Medical imaging devices requiring reliable test access in compact form factors

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SCANSTA476TSD/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
