SN10KHT5578NT TI Bus Transceiver | 24-PDIP | 10K ECL, TTL Compatible

Product Overview

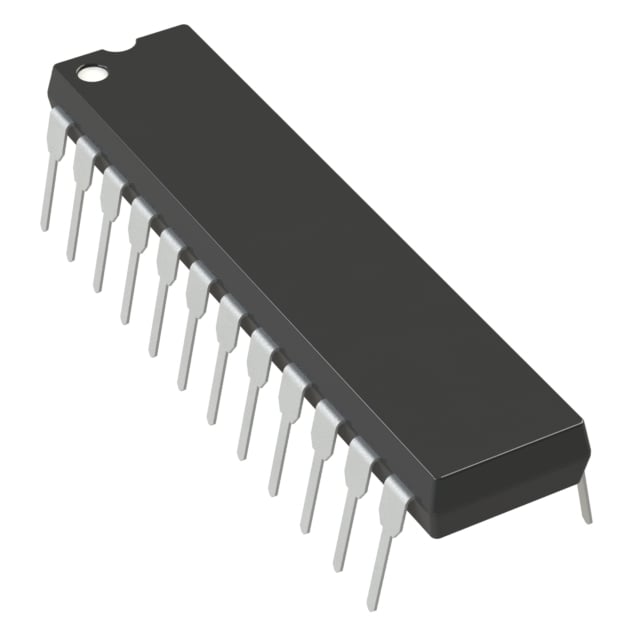

The SN10KHT5578NT is a high-performance bus transceiver from Texas Instruments, designed for bidirectional asynchronous communication between TTL and ECL logic families. Housed in a 24-pin PDIP package, this device integrates 8-bit data paths with direction control, making it ideal for mixed-logic systems requiring high-speed data transfer. It operates from a single -5.2V supply and features 10K ECL compatibility on one side and TTL compatibility on the other, ensuring seamless integration in legacy and modern designs.

Detailed Technical Specifications

Key Features

• Bidirectional 8-bit bus transceiver with direction control (DIR)
• TTL-to-ECL and ECL-to-TTL translation
• 10K ECL compatible inputs/outputs
• Single -5.2V supply operation
• High-speed propagation delay of 4.5 ns typical
• Output enable (OE) for bus isolation
• Industry-standard 24-pin PDIP package

Target Applications

• 5G base station control logic interfacing
• Automotive dashboard display drivers
• Industrial PLC communication modules
• High-speed data acquisition systems
• Mixed-logic backplane designs
