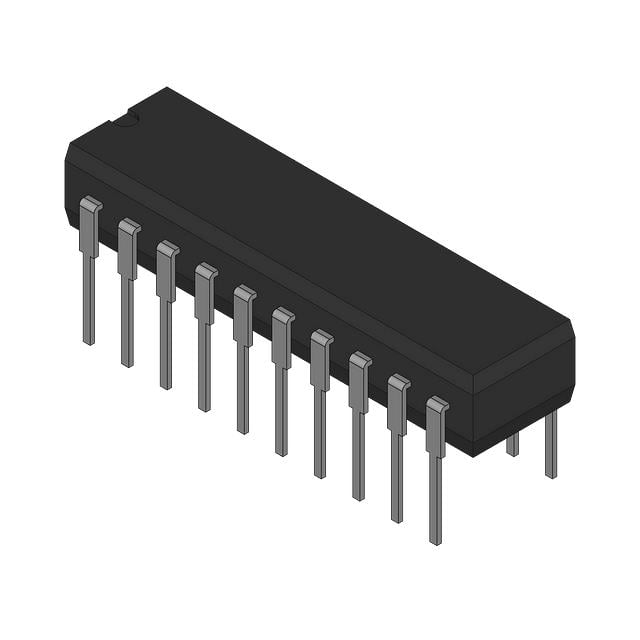

SN54AS805BJ TI Logic Gates | 6-ch, 4.5V-5.5V, 20ns delay

Product Overview

The SN54AS805BJ is a high-performance hex 2-input NAND gate from Texas Instruments, designed for military and aerospace applications. It features advanced Schottky (AS) technology for high speed and low power consumption. Operating from a 4.5V to 5.5V supply, it provides reliable logic functions with propagation delays as low as 20ns. The device is offered in a hermetic ceramic DIP package, ensuring robust operation in extreme environments.

Detailed Technical Specifications

Key Features

• Advanced Schottky (AS) technology for high speed
• Low power consumption: 10mW per gate typical
• Wide operating temperature range: -55°C to +125°C
• Hermetic ceramic package for harsh environments
• Direct interface with TTL logic levels
• Standard 16-pin DIP footprint

Target Applications

• Military avionics: flight control computers, radar systems
• Aerospace: satellite communication modules, navigation systems
• Industrial control: programmable logic controllers (PLCs)
• High-reliability computing: server motherboards, base station controllers
• Test and measurement equipment: oscilloscopes, signal generators
