Product Overview

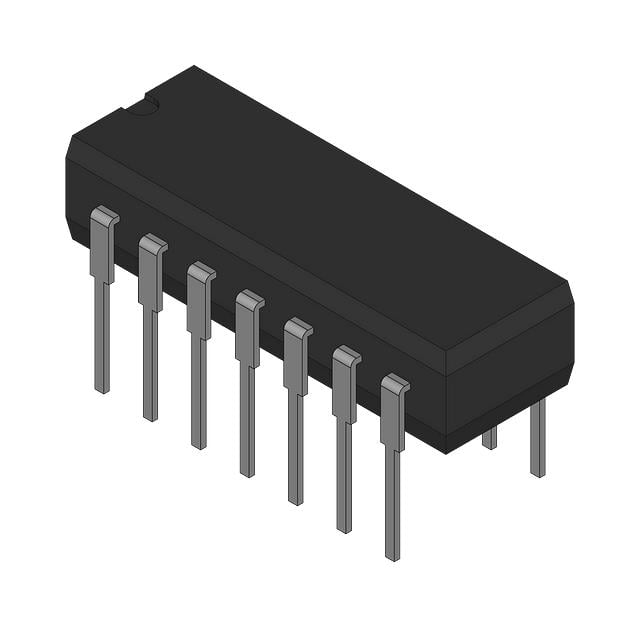

The SN54HC11J is a high-speed CMOS triple 3-input AND gate from Texas Instruments, designed for operation from 2V to 6V. Housed in a 14-pin ceramic dual-in-line package (CDIP), this device offers the same pinout and functionality as the LS11 but with lower power consumption and higher noise immunity. It is ideal for military, aerospace, and industrial applications requiring reliable logic gating under harsh conditions.

Detailed Technical Specifications

Parameter Value
Supply Voltage (VCC) 2V to 6V
Input Voltage (VI) 0V to VCC
Output Voltage (VO) 0V to VCC
High-Level Input Voltage (VIH) 3.15V min (at VCC=4.5V)
Low-Level Input Voltage (VIL) 1.35V max (at VCC=4.5V)
High-Level Output Current (IOH) -4mA (at VCC=4.5V)
Low-Level Output Current (IOL) 4mA (at VCC=4.5V)
Propagation Delay (tpd) 12ns typ (at VCC=5V, CL=50pF)
Operating Temperature Range -55°C to +125°C
Package 14-CDIP (Ceramic DIP)

Key Features

  • Triple 3-input AND gate in a single package
  • Wide supply voltage range: 2V to 6V
  • High noise immunity: VNIH = 28% of VCC, VNIL = 21% of VCC
  • Low power consumption: 20µA max ICC
  • Balanced propagation delays: tPHL = tPLH
  • Inputs are TTL-voltage compatible
  • Hermetic ceramic package for high reliability
  • MIL-STD-883 compliant

Target Applications

The SN54HC11J is suitable for a variety of applications including:

  • 5G base station control logic
  • Avionics display systems (e.g., cockpit dashboard)
  • Industrial automation controllers
  • Military communication equipment
  • Medical imaging systems
  • Automotive engine control units (ECUs)
