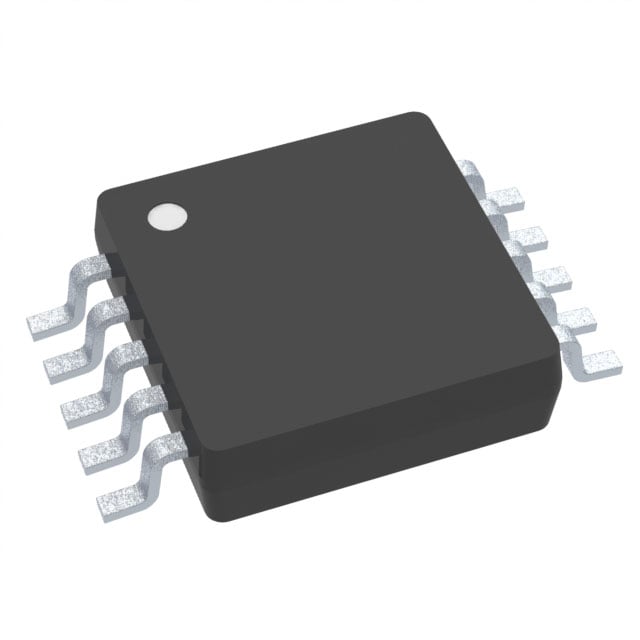

SN65HVD1470DGSR TI RS-485 Transceiver | 10-VSSOP | 3.3V, 50Mbps

Product Overview

The SN65HVD1470DGSR is a low-power, 3.3V RS-485/RS-422 transceiver from Texas Instruments, designed for high-speed data transmission up to 50 Mbps. It features a 1/8 unit load, allowing up to 256 nodes on a single bus, and includes driver overcurrent protection and thermal shutdown. The device is available in a compact 10-pin VSSOP package, making it ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Low power consumption: <1.5 mA quiescent current
• High data rate: up to 50 Mbps
• 1/8 unit load allows 256 nodes on bus
• Driver overcurrent protection and thermal shutdown
• Receiver open-circuit, short-circuit, and idle bus fail-safe
• Glitch-free power-up/power-down protection
• Extended industrial temperature range

Target Applications

• 5G base station backhaul communication
• Industrial automation (e.g., PLC, motor drives)
• Building automation (e.g., HVAC controllers, lighting systems)
• Telecommunications equipment (e.g., routers, switches)
• Automotive infotainment and dashboard clusters
• Medical equipment (e.g., patient monitoring systems)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN65HVD1470DGSR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
