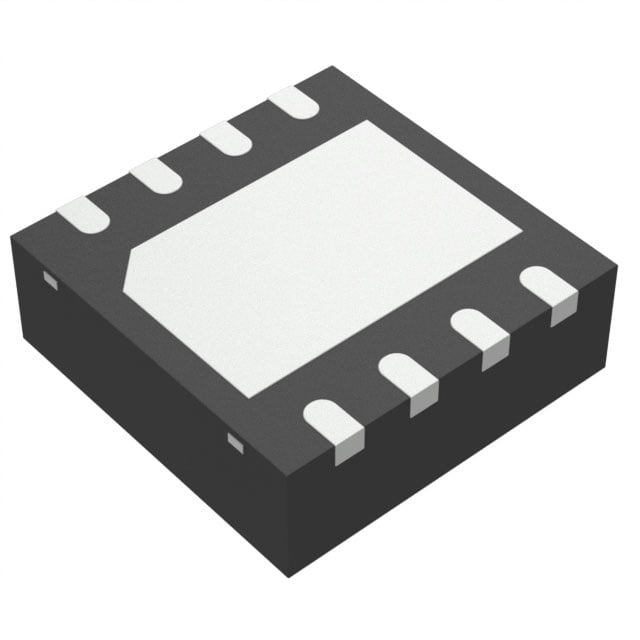

SN65HVD75DRBR TI RS-485 Transceiver | 8-SON(3x3) | 3.3V, 50Mbps, Half-Duplex

Product Overview

The SN65HVD75DRBR from Texas Instruments is a robust RS-485/RS-422 transceiver designed for industrial communication networks. Operating from a 3.3V supply, it delivers data rates up to 50 Mbps while maintaining low power consumption. The device features a half-duplex architecture with a differential driver and receiver, integrated in a compact 8-pin SON (3x3 mm) package. It is optimized for long-distance data transmission over twisted-pair cables, with enhanced protection against electrostatic discharge (ESD) up to ±16 kV HBM. The SN65HVD75DRBR is ideal for applications requiring high noise immunity and reliable operation in harsh environments.

Detailed Technical Specifications

Key Features

• 3.3V supply operation with low quiescent current (1.5 mA typical)
• High data rate up to 50 Mbps for fast communication
• Extended ESD protection: ±16 kV HBM on bus pins
• Wide common-mode voltage range (-7V to +12V) for robust noise rejection
• Thermal shutdown protection for driver overload
• Open-circuit, short-circuit, and idle bus fail-safe receiver
• Small 8-pin SON package (3x3 mm) for space-constrained designs

Target Applications

• Industrial automation: PLCs, motor drives, and sensor networks (e.g., Siemens S7-1200 PLC)
• Building automation: HVAC controllers, lighting systems (e.g., Johnson Controls Metasys)
• Telecommunications: 5G base station backhaul, remote radio units (e.g., Ericsson AIR 6488)
• Automotive: In-vehicle infotainment, dashboard communication (e.g., Tesla Model 3 gateway)
• Energy management: Smart grid meters, solar inverter communication (e.g., Enphase IQ7)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN65HVD75DRBR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
