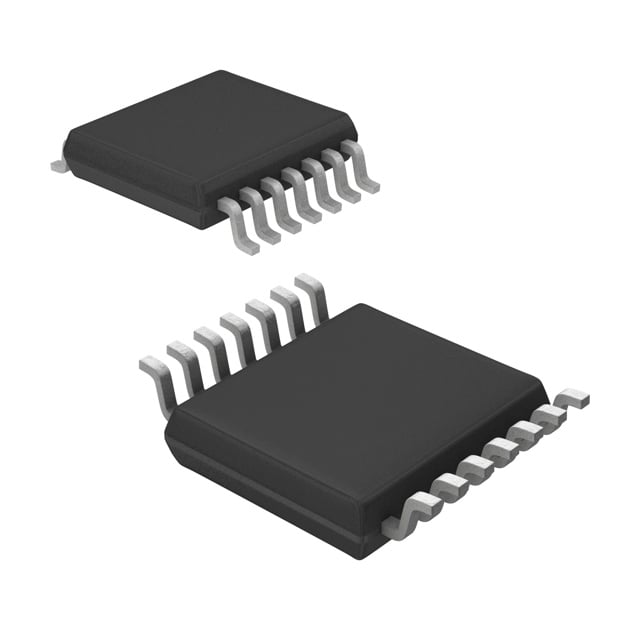

SN65LVDS122PWG4 TI LVDS Crosspoint Switch | 16-TSSOP | 2x2, 400 Mbps

Product Overview

The SN65LVDS122PWG4 is a high-speed 2x2 LVDS crosspoint switch from Texas Instruments, designed for low-voltage differential signaling (LVDS) applications. It features two differential inputs and two differential outputs, allowing flexible routing of high-speed signals. The device operates from a single 3.3V supply and supports data rates up to 400 Mbps. Housed in a compact 16-pin TSSOP package, it is ideal for space-constrained designs requiring signal switching and distribution.

Detailed Technical Specifications

Key Features

• Low-voltage differential signaling (LVDS) with 350 mV typical output swing
• Flow-through pinout for easy PCB layout
• Power-down mode for reduced power consumption
• Fail-safe outputs for open, short, or terminated inputs
• Compatible with ANSI TIA/EIA-644 LVDS standard

Target Applications

• 5G base station backplane signal routing
• Automotive dashboard display interfaces
• Industrial camera data distribution
• Medical imaging equipment signal switching
• High-speed data acquisition systems
