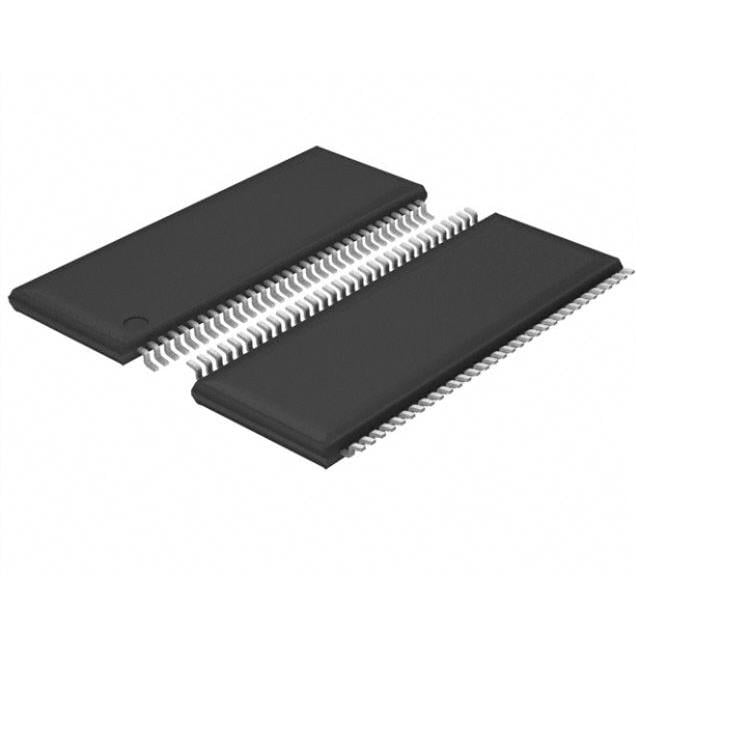

SN65LVDS386DGGR TI LVDS Driver/Receiver | 64-TSSOP | 400 Mbps, 3.3V

Product Overview

The SN65LVDS386DGGR is a high-performance LVDS (Low-Voltage Differential Signaling) driver and receiver from Texas Instruments, designed for high-speed data transmission with low power consumption. Housed in a compact 64-TSSOP package, this device supports data rates up to 400 Mbps and operates from a single 3.3V supply. It features 8 differential driver channels and 8 receiver channels, making it ideal for point-to-point and multidrop applications. The device offers robust signal integrity with typical output voltage swing of 350 mV and common-mode voltage range of 0.2V to 2.2V. It is compliant with TIA/EIA-644-A LVDS standard and provides fail-safe outputs for receiver open, short, or terminated inputs.

Detailed Technical Specifications

Key Features

• Compliant with TIA/EIA-644-A LVDS standard
• Low power consumption: 150 mW typical at 400 Mbps
• Fail-safe receiver outputs for open, short, or terminated inputs
• Flow-through pinout for easy PCB layout
• High-speed data transmission up to 400 Mbps
• Wide common-mode voltage range for robust noise immunity
• Industrial temperature range (-40°C to +85°C)

Target Applications

• 5G base station backplane interconnects
• Automotive infotainment and dashboard displays
• Industrial automation and control systems
• Medical imaging equipment (e.g., ultrasound machines)
• High-speed data acquisition systems
• Video surveillance and broadcasting equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN65LVDS386DGGR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
