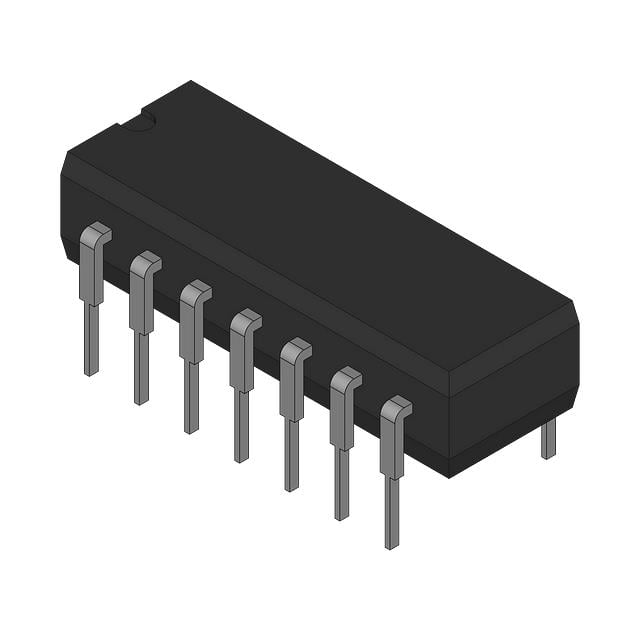

SN7405NE4 TI Logic Gates | 6-ch Inverter | 4.75-5.25V, 16mA

Product Overview

The SN7405NE4 is a hex inverter with open-collector outputs from Texas Instruments, part of the 7400 series TTL logic family. It contains six independent inverter gates, each with an open-collector output stage, allowing wired-AND connections and driving higher voltage or current loads. Operating from a single 5V supply, it is ideal for logic inversion, level shifting, and bus driving applications.

Detailed Technical Specifications

Key Features

• Six independent inverter gates with open-collector outputs
• Wired-AND capability for bus applications
• Outputs can drive up to 16mA sink current
• Wide operating voltage range: 4.75V to 5.25V
• Standard TTL input thresholds
• High noise immunity: typical 1V
• Pb-free and RoHS compliant

Target Applications

• Logic inversion in 5G base station control boards
• Level shifting for automotive dashboard displays
• Bus driving in industrial PLC systems
• Wired-AND interrupt controllers in server motherboards
• Signal conditioning in medical monitoring equipment
