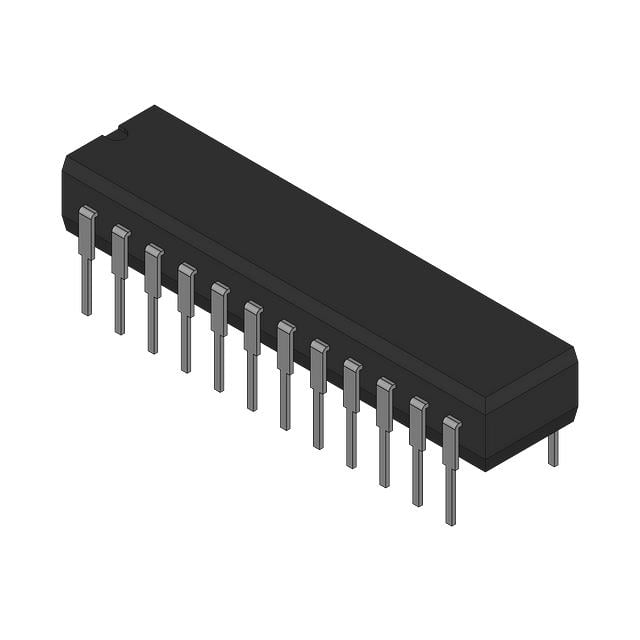

SN74143N TI Decoder/Driver | 24-PDIP | BCD-to-7-Segment, 15V

Product Overview

The SN74143N is a BCD-to-7-segment decoder/driver with internal output pull-up resistors, designed by Texas Instruments. It accepts 4-bit BCD input and drives common-anode LED displays directly. Housed in a 24-pin PDIP package, it operates over a supply voltage range of 4.75V to 5.25V and features active-low outputs with a typical sink current of 24 mA per segment. The device includes a lamp test input and a blanking input for display control.

Detailed Technical Specifications

Key Features

• BCD-to-7-segment decoding with active-low outputs
• Internal pull-up resistors eliminate external components
• Lamp test (LT) and blanking (BI) inputs for display control
• Ripple blanking input (RBI) and output (RBO) for leading/trailing zero suppression
• Direct drive capability for common-anode LED displays
• TTL compatible inputs

Target Applications

• Digital panel meters and instrumentation displays
• Industrial control panels (e.g., PLC operator interfaces)
• Consumer electronics (e.g., microwave oven timers, digital clocks)
• Automotive dashboard displays (e.g., speedometer, odometer)
• Telecommunications equipment (e.g., 5G base station status indicators)
• Medical devices (e.g., patient monitoring system numeric displays)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74143N. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
