SN74ABT162260DL TI Bus Transceiver | 16-bit, 3.6V, 64mA

Product Overview

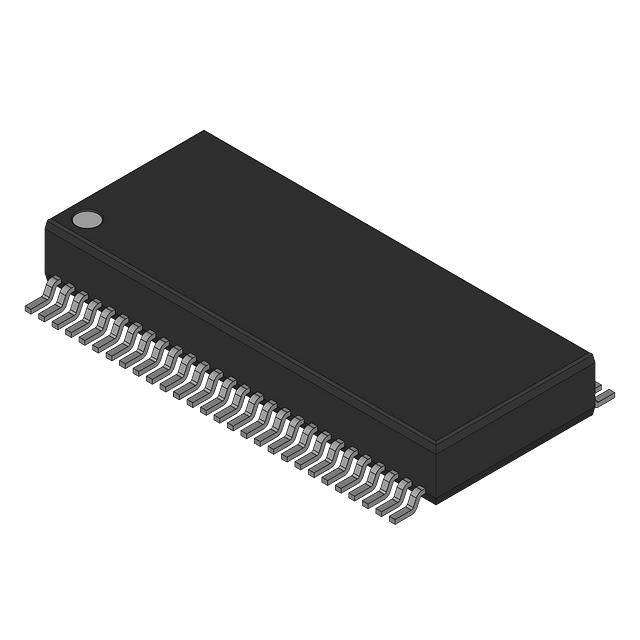

The SN74ABT162260DL from Texas Instruments is a 16-bit (dual 8-bit) bus transceiver with 3-state outputs, designed for asynchronous communication between data buses. It operates from a 4.5V to 5.5V supply, with 3.6V tolerant inputs and outputs, making it suitable for mixed-voltage systems. The device features two 8-bit transceivers with separate output-enable (OE) and direction-control (DIR) pins, providing flexible bidirectional data flow. Housed in a 56-pin SSOP package, it supports high-drive outputs up to 64 mA, enabling direct drive of heavily loaded backplanes.

Detailed Technical Specifications

Key Features

• 16-bit bus transceiver with dual 8-bit channels
• 3-state outputs for bus-oriented applications
• 3.6V tolerant inputs and outputs for mixed-voltage systems
• High drive capability: 64 mA sink, 32 mA source
• Typical propagation delay of 4.1 ns
• Power-up 3-state to prevent bus contention during power sequencing
• ESD protection exceeds 2000V HBM

Target Applications

• 5G base station backplane communication (e.g., Nokia AirScale baseband unit)
• Telecommunications switching equipment (e.g., Cisco ASR 9000 line cards)
• Industrial control systems (e.g., Siemens S7-1500 PLC backplane)
• Data storage servers (e.g., Dell PowerEdge server backplane)
• Automotive infotainment dashboards (e.g., Tesla Model 3 center display)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ABT162260DL. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
