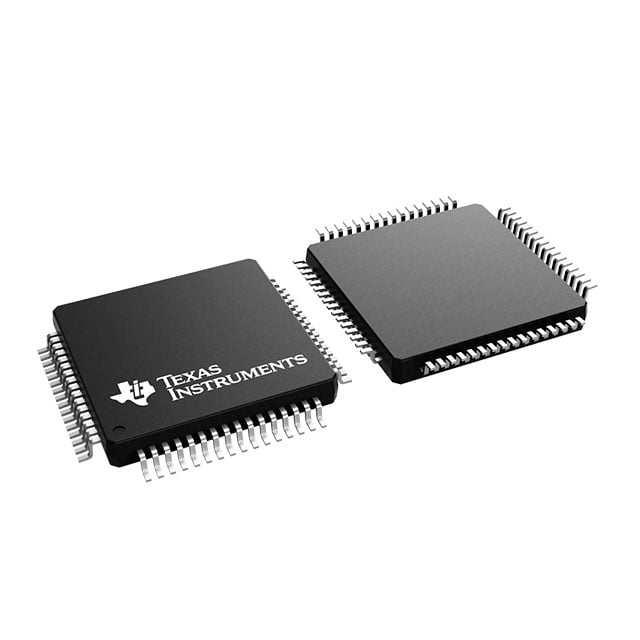

SN74ABT18502PM TI Universal Bus Transceiver | 64-LQFP (10x10) | 3.3V, 8-bit

Product Overview

The SN74ABT18502PM from Texas Instruments is a high-performance 8-bit universal bus transceiver designed for bidirectional asynchronous communication between data buses. It features two 8-bit input/output ports (A and B) and control pins (OEAB, CEAB, LEAB, OEBA, CEBA, LEBA) that allow flexible data flow direction and storage. Operating from a 3.3V supply, it supports mixed-voltage systems with 5V-tolerant inputs. The device is housed in a 64-pin LQFP (10x10 mm) package, ideal for space-constrained applications requiring high-speed data transfer and low power consumption.

Detailed Technical Specifications

Key Features

• Bidirectional bus transceiver with storage capability
• 8-bit wide data path
• 3.3V operation with 5V-tolerant inputs
• High drive capability: ±32 mA
• Low propagation delay: 4.1 ns typical
• Power-up 3-state outputs to prevent bus contention
• Flow-through pinout for easy PCB layout
• ESD protection exceeds 2000V HBM

Target Applications

• 5G base station control boards (e.g., data bus isolation in remote radio units)
• Automotive dashboard display modules (e.g., instrument cluster communication)
• Industrial PLC I/O modules (e.g., backplane data transfer)
• Telecommunications switching equipment (e.g., line card interfaces)
• Medical imaging systems (e.g., data acquisition boards)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ABT18502PM. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
