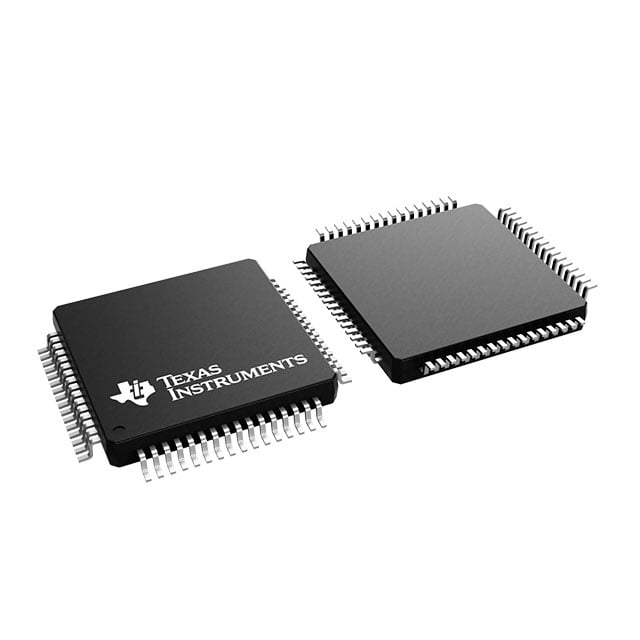

SN74ABTH18502PMR TI Universal Bus Transceiver | 64-LQFP (10x10) | 3-State, 5V Tolerant

Product Overview

The SN74ABTH18502PMR from Texas Instruments is a 18-bit universal bus transceiver with 3-state outputs, designed for asynchronous communication between data buses. It operates from a 4.5V to 5.5V supply and features 5V-tolerant I/Os, making it suitable for mixed-voltage systems. Housed in a 64-pin LQFP (10x10 mm) package, it offers high drive capability (up to 64 mA) and low propagation delay (typical 4.5 ns). The device supports bidirectional data flow with direction control (DIR) and output enable (OE) pins, ideal for memory interfacing, backplane driving, and bus isolation in telecom and industrial applications.

Detailed Technical Specifications

Key Features

• 18-bit bidirectional bus transceiver
• 3-state outputs for bus isolation
• 5V-tolerant inputs/outputs
• High drive: -32 mA / 64 mA
• Low propagation delay: 4.5 ns typical
• Power-up 3-state to prevent bus contention
• Flow-through pinout for easy PCB layout
• ESD protection exceeds 2000V HBM

Target Applications

• 5G base station backplane communication
• Telecom switches and routers
• Industrial PLC and motor control
• Automotive infotainment and dashboard
• Memory interfacing (SRAM, DRAM)
• Data acquisition systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ABTH18502APMR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
