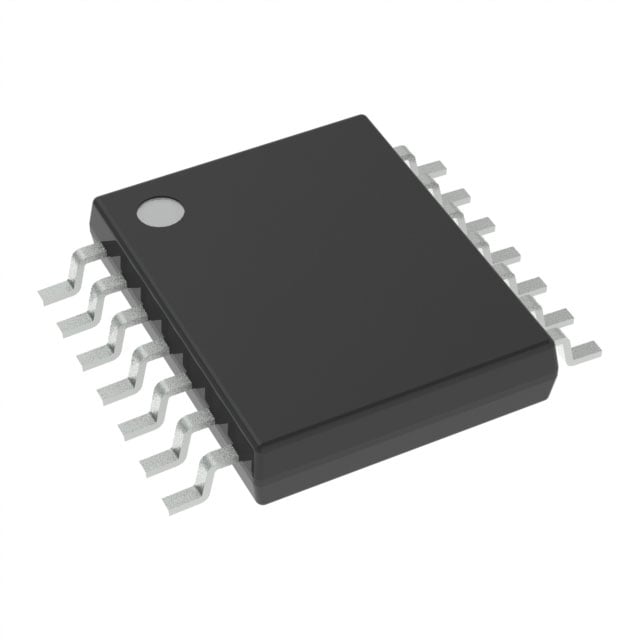

SN74ACT05PWRQ1 TI Inverter | 14-TSSOP | Open-Drain, 5V

Product Overview

The SN74ACT05PWRQ1 is a high-performance, automotive-grade hex inverter with open-drain outputs from Texas Instruments. It is part of the ACT family, offering advanced CMOS technology with TTL-compatible inputs. The device features six independent inverters, each with an open-drain output that can be connected to a pull-up resistor for wired-OR logic or level shifting. Housed in a compact 14-TSSOP package, it is designed for space-constrained automotive and industrial applications requiring reliable logic inversion with high output drive capability.

Detailed Technical Specifications

Key Features

• Automotive Grade: AEC-Q100 qualified for reliability in harsh environments
• Open-Drain Outputs: Allows wired-OR connection and level translation
• High Drive Capability: IOL up to 24 mA for driving LEDs or relays
• Wide Supply Range: 4.5V to 5.5V compatible with standard 5V systems
• Low Power Consumption: CMOS technology reduces static power
• TTL-Compatible Inputs: Direct interface with 5V logic families
• Compact Package: 14-TSSOP saves board space

Target Applications

• Automotive Body Electronics: Door control modules, seat control units, lighting systems
• Infotainment Systems: Dashboard displays, audio amplifiers, navigation units
• Industrial Automation: PLCs, sensor interfaces, motor control logic
• 5G Base Stations: Control logic for power management and signal routing
• Consumer Electronics: Smart home hubs, gaming consoles, set-top boxes

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ACT05PWRQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
