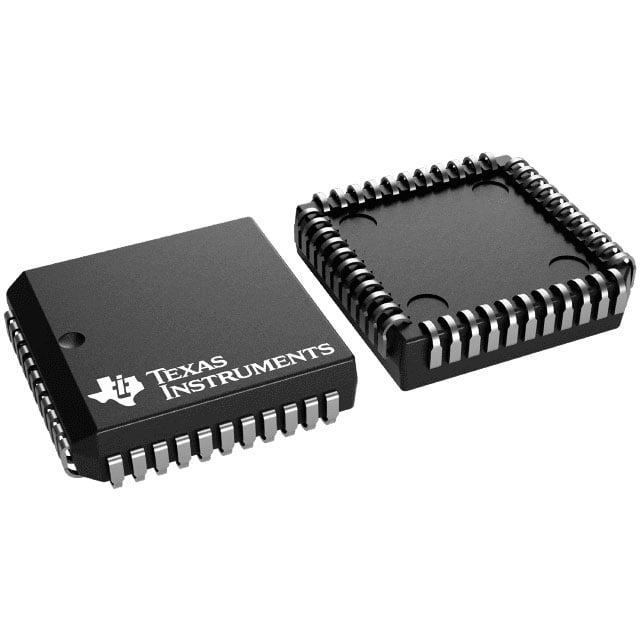

SN74ACT8990FNR TI Test Equipment | 44-PLCC (16.58X16.58) | 10MHz, 5V

Product Overview

The SN74ACT8990FNR from Texas Instruments is a high-performance test bus controller designed for boundary-scan testing (IEEE Std 1149.1). It provides a complete interface between a host processor and a test access port (TAP) on a target board, enabling efficient testing of digital circuits. Housed in a 44-pin PLCC package (16.58x16.58 mm), this device operates at a maximum clock frequency of 10 MHz and supports a wide supply voltage range of 4.5V to 5.5V. Its robust design ensures reliable operation in demanding industrial and telecommunications environments.

Detailed Technical Specifications

Key Features

• Compliant with IEEE Std 1149.1-1990 boundary-scan standard
• Supports test clock frequencies up to 10 MHz
• Wide operating voltage range: 4.5V to 5.5V
• Industrial temperature range: -40°C to +85°C
• Compact 44-pin PLCC package for space-constrained designs
• Low power consumption with high output drive
• Direct interface to host processor via 8-bit parallel bus
• Programmable test modes for flexible testing

Target Applications

The SN74ACT8990FNR is ideal for boundary-scan testing in complex digital systems. Specific applications include:

• 5G base station control boards: used for testing high-speed digital interconnects and FPGA configurations
• Automotive dashboard electronics: ensures reliable testing of infotainment and driver assistance modules
• Industrial PLCs: facilitates in-system programming and fault diagnosis
• Telecommunications switches: enables efficient testing of backplane and line card interfaces
• Medical imaging equipment: supports boundary-scan testing of high-density PCBs

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ACT8990FNR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
