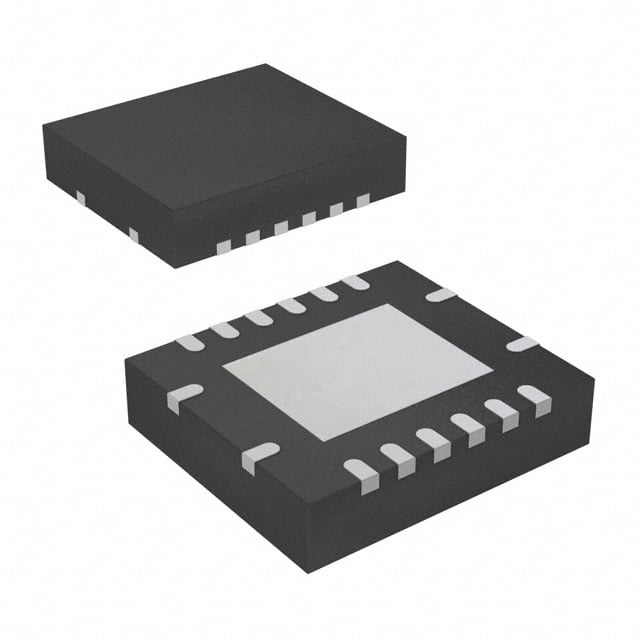

SN74AHC157RGYR TI Multiplexer | 16-VQFN (4x3.5) | 2V-5.5V, 4-Channel

Product Overview

The SN74AHC157RGYR is a high-speed CMOS quad 2-input multiplexer from Texas Instruments, designed for 2-V to 5.5-V VCC operation. It selects one of two 4-bit data sources based on the state of the select input (S). The device features low power consumption, high noise immunity, and is ideal for data routing in digital systems. Housed in a compact 16-VQFN (4x3.5 mm) package, it is suitable for space-constrained applications.

Detailed Technical Specifications

Key Features

• Wide operating voltage range: 2 V to 5.5 V
• High speed: tpd = 7.5 ns (typ) at 5 V
• Low power consumption: 10-μA max ICC
• High noise immunity: VNIH = VNIL = 28% of VCC (min)
• Inputs are overvoltage tolerant up to 5.5 V
• Supports partial-power-down mode (Ioff)
• Latch-up performance exceeds 250 mA per JESD 17
• ESD protection exceeds JESD 22

Target Applications

• Data multiplexing in 5G base station control boards
• Signal routing in automotive dashboard displays
• Industrial PLC I/O modules
• Portable medical devices (e.g., patient monitors)
• Consumer electronics (e.g., smart home hubs)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AHC157RGYR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
