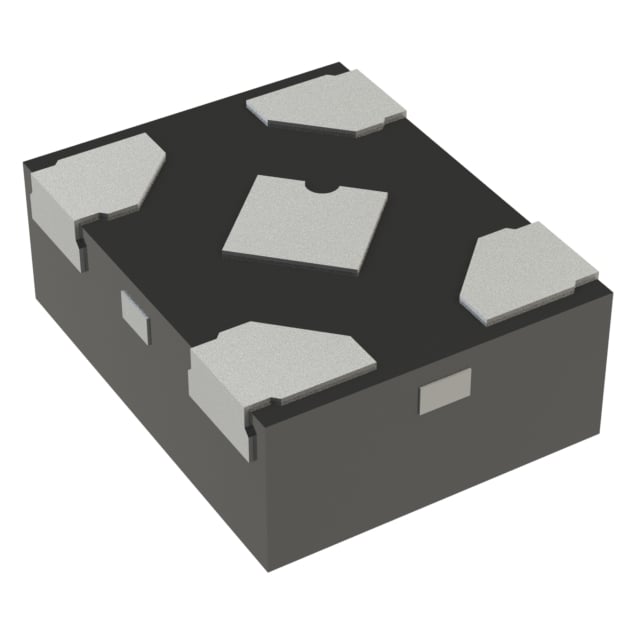

SN74AHC1G32WDTXRQ1 TI Single 2-Input OR Gate | 5-X2SON (1.1x0.85) | 2V to 5.5V, -40°C to 125°C

Product Overview

The SN74AHC1G32WDTXRQ1 is a single 2-input positive-OR gate from Texas Instruments, designed for automotive applications. It operates over a wide supply voltage range of 2V to 5.5V and is specified for the extended industrial temperature range of -40°C to +125°C. Housed in a compact 5-pin X2SON package (1.1mm x 0.85mm), this device offers high-speed performance with low power consumption, making it ideal for space-constrained and power-sensitive automotive electronics.

Detailed Technical Specifications

Key Features

• Single 2-input OR gate in ultra-small X2SON package
• Wide supply voltage range: 2V to 5.5V
• Low power consumption: ICC typically 1 µA
• High noise immunity: VIH = 0.7 × VCC, VIL = 0.3 × VCC
• ESD protection exceeds 2000V HBM
• Automotive qualified: AEC-Q100
• Supports up to 8 mA output drive

Target Applications

This device is suitable for various automotive and industrial applications, including:

• 5G base station control logic
• Automotive dashboard display modules
• Body control modules (BCM)
• Infotainment systems
• Sensor signal conditioning
• Portable battery-powered devices

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AHC1G32WDTXRQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74AHC1G32WDTXRQ1 是德州儀器推出的一款單路2輸入正或門，專為汽車應用設計。它可在 2V 至 5.5V 的寬電源電壓範圍內工作，並支援 -40°C 至 +125°C 的擴展工業溫度範圍。該器件採用緊湊的 5 引腳 X2SON 封裝（1.1mm x 0.85mm），具有高速性能和低功耗特點，非常適合空間受限且對功耗敏感的汽車電子設備。

詳細技術參數

核心特性

• 單路2輸入或門，採用超小型 X2SON 封裝
• 寬電源電壓範圍：2V 至 5.5V
• 低功耗：ICC 典型值 1 µA
• 高抗噪能力：VIH = 0.7 × VCC，VIL = 0.3 × VCC
• ESD 保護超過 2000V HBM
• 通過汽車級認證：AEC-Q100
• 支援高達 8 mA 的輸出驅動

典型應用場景

該器件適用於多種汽車和工業應用，包括：

• 5G 基站控制邏輯
• 汽車儀表盤顯示模塊
• 車身控制模塊 (BCM)
• 信息娛樂系統
• 傳感器信號調理
• 便攜式電池供電設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74AHC1G32WDTXRQ1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
