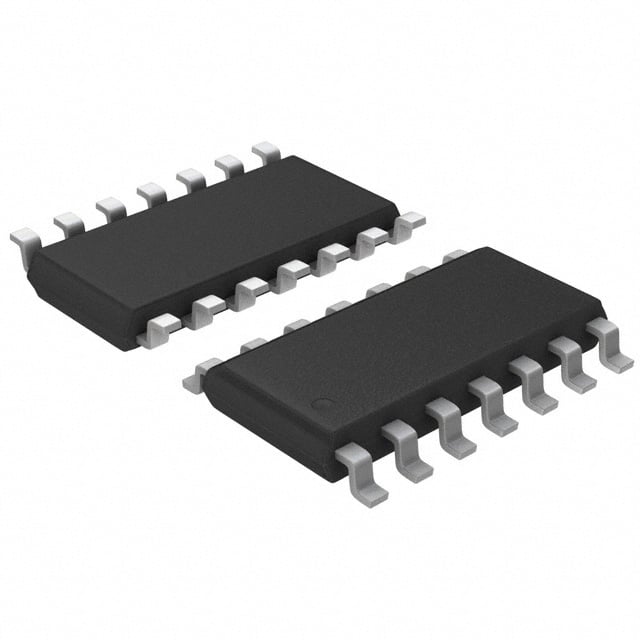

SN74ALS04BDE4 TI Inverter | 14-SOIC | 6 Channels, 4.5V-5.5V

Product Overview

The SN74ALS04BDE4 is a hex inverter from Texas Instruments, designed for high-speed logic applications. It contains six independent inverter gates in a compact 14-SOIC package. Operating from a 4.5V to 5.5V supply, this device features advanced Schottky-clamped TTL (ALS) technology, providing a balance of speed and power consumption. Typical propagation delay is 5 ns, with a maximum of 10 ns, making it suitable for high-frequency signal processing.

Detailed Technical Specifications

Key Features

• Six independent inverter gates
• Advanced Schottky-clamped TTL (ALS) technology
• Typical propagation delay of 5 ns
• Low power consumption: 22 mW per gate
• Wide operating voltage range: 4.5V to 5.5V
• Inputs are overvoltage tolerant up to 5.5V
• Outputs sink up to 8 mA and source up to 0.4 mA
• Standard 14-SOIC package for space-saving designs

Target Applications

• 5G base station control logic
• Automotive dashboard display drivers
• Industrial automation PLCs
• Consumer electronics like smart home hubs
• Signal inversion in data communication systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ALS04BDE4. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
