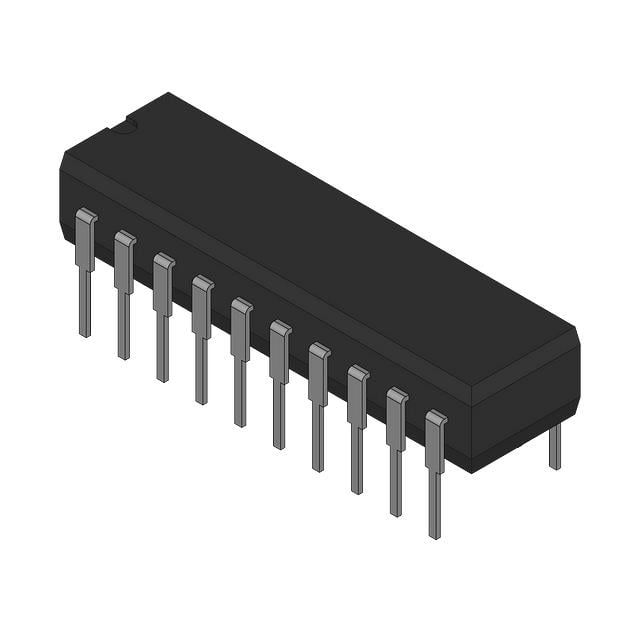

SN74ALS569ANS TI Synchronous Up/Down Counter | 4-Bit, 20MHz

Product Overview

The SN74ALS569ANS is a high-performance 4-bit synchronous up/down counter from Texas Instruments, designed for use in advanced digital systems. It features a fully independent clock circuit, enabling synchronous counting in either direction. The device includes a clear function to reset the outputs to zero and a load function to preset the counter to any 4-bit value. With a typical clock frequency of 20 MHz, it is suitable for high-speed applications. The SN74ALS569ANS is offered in a 20-pin SOP package, providing a compact solution for space-constrained designs.

Detailed Technical Specifications

Key Features

• Synchronous up/down counting with independent clock
• Asynchronous clear and synchronous load functions
• Buffered outputs for improved noise immunity
• Low power consumption typical 50 mW
• Wide operating voltage range 4.5V to 5.5V
• High output drive capability ±24 mA
• Compatible with TTL logic levels

Target Applications

• 5G base station control logic for channel counting
• Automotive dashboard display counters (e.g., odometer)
• Industrial automation programmable logic controllers (PLCs)
• Digital frequency dividers in communication systems
• Test and measurement equipment event counters
