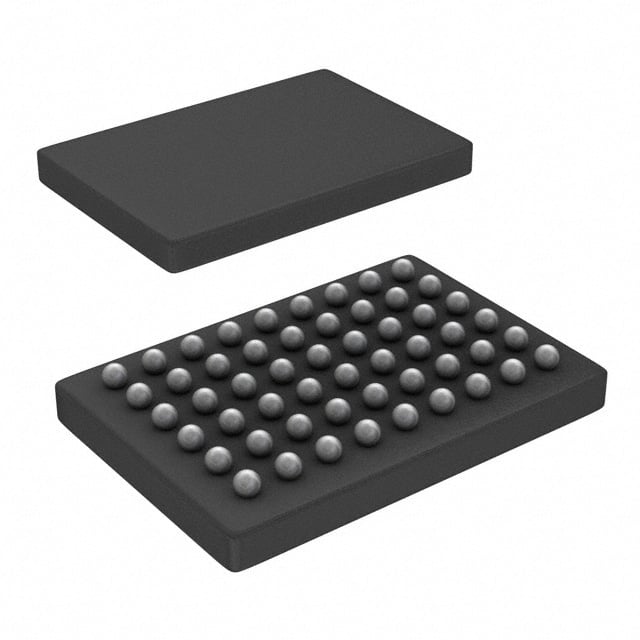

SN74ALVC16244AZRDR TI Buffer/Driver | 54-BGAMICROSTARJUNIOR (8X5.5) | 1.65-3.6V, 16-bit

Product Overview

The SN74ALVC16244AZRDR is a 16-bit buffer/driver from Texas Instruments, designed for 1.65-V to 3.6-V VCC operation. It features non-inverting outputs with 3-state capability, making it ideal for bus-oriented applications. Housed in a compact 54-ball BGA MICROSTAR JUNIOR (8x5.5 mm) package, it offers high drive strength (up to 24 mA) and low static power consumption (10 µA max). The device supports partial power-down (Ioff) and is latch-up performance exceeds 100 mA per JESD 78, Class II.

Detailed Technical Specifications

Key Features

• Wide operating voltage range: 1.65 V to 3.6 V
• 16-bit non-inverting buffer/driver with 3-state outputs
• High drive: ±24 mA at 3.0 V
• Low static power consumption: 10 µA max
• Partial power-down (Ioff) supports live insertion
• Latch-up performance exceeds 100 mA per JESD 78, Class II
• ESD protection: 2000 V HBM, 1000 V CDM
• Packaged in space-saving 54-ball BGA (8x5.5 mm)

Target Applications

• 5G base station control logic: buffering address/data lines between FPGA and memory
• Automotive dashboard display: driving LED indicators and segment displays
• Industrial PLC: signal buffering for I/O modules
• Networking equipment: bus isolation in routers and switches
• Consumer electronics: level translation in smart home hubs

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ALVC16244AZRDR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74ALVC16244AZRDR 是德州儀器（TI）推出的16位緩衝器/驅動器，工作電壓範圍為1.65 V至3.6 V。它具有非反相輸出和三態功能，非常適合總線應用。器件採用緊湊的54球BGA MICROSTAR JUNIOR（8x5.5 mm）封裝，提供高驅動能力（高達24 mA）和低靜態功耗（最大10 µA）。支持部分斷電（Ioff），閂鎖性能超過100 mA（符合JESD 78 Class II標準）。

詳細技術參數

核心特性

• 寬工作電壓範圍：1.65 V 至 3.6 V
• 16位非反相緩衝器/驅動器，帶三態輸出
• 高驅動能力：±24 mA (3.0 V時)
• 低靜態功耗：最大10 µA
• 支持部分斷電（Ioff），適用於熱插拔
• 閂鎖性能超過100 mA（符合JESD 78 Class II）
• ESD保護：2000 V HBM，1000 V CDM
• 採用節省空間的54球BGA封裝（8x5.5 mm）

典型應用場景

• 5G基站控制邏輯：FPGA與存儲器之間的地址/數據線緩衝
• 汽車儀表盤顯示：驅動LED指示燈和段式顯示器
• 工業PLC：I/O模塊的信號緩衝
• 網絡設備：路由器與交換機中的總線隔離
• 消費電子：智能家居中樞的電平轉換

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74ALVC16244AZRDR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
