SN74ALVC16409DL TI Universal Bus Transceiver | 16-bit, 3.3V, 5V Tolerant

Product Overview

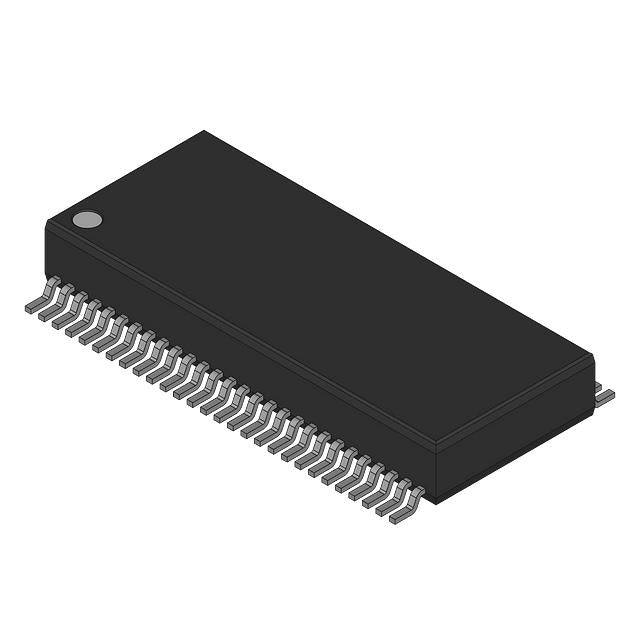

The SN74ALVC16409DL from Texas Instruments is a 16-bit universal bus transceiver designed for asynchronous communication between data buses. It operates with a 3.3V supply voltage while being 5V tolerant on I/O pins, enabling seamless interfacing between different voltage domains. The device features two 8-bit transceivers with separate output-enable (OE) and direction-control (DIR) pins, providing flexible bidirectional data flow. Housed in a 48-pin SSOP package, it is ideal for high-speed data transfer in telecom, computing, and industrial applications.

Detailed Technical Specifications

Key Features

• Bidirectional bus transceiver with separate OE and DIR controls
• 5V tolerant inputs/outputs for mixed-voltage systems
• Low propagation delay (3.5 ns max) for high-speed operation
• Supports partial power-down mode (Ioff) to prevent backflow current
• ESD protection exceeds JESD 22 (2000-V HBM, 1000-V CDM)
• Latch-up performance exceeds 100 mA per JESD 78

Target Applications

• 5G base station control boards (e.g., data bus isolation between FPGA and processor)
• Automotive dashboard display modules (e.g., connecting MCU to LCD driver)
• Industrial PLC I/O modules (e.g., bridging 3.3V logic to 5V sensors)
• Network routers and switches (e.g., backplane data transfer)
• Medical imaging equipment (e.g., data acquisition systems)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ALVC16409DL. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74ALVC16409DL 是德州儀器推出的16位通用匯流排收發器，專為數據匯流排之間的異步通信設計。它採用3.3V供電，但I/O引腳可耐受5V電壓，從而實現不同電壓域之間的無縫連接。該器件包含兩個獨立的8位收發器，每個收發器都有獨立的輸出使能（OE）和方向控制（DIR）引腳，提供靈活的雙向數據傳輸。採用48引腳SSOP封裝，適用於電信、計算機和工業應用中的高速數據傳輸。

詳細技術參數

核心特性

• 雙向匯流排收發器，帶獨立OE和DIR控制
• 5V耐受輸入/輸出，適用於混合電壓系統
• 低傳播延遲（最大3.5 ns），支持高速操作
• 支持部分斷電模式（Ioff），防止反向電流
• ESD保護超過JESD 22標準（2000-V HBM，1000-V CDM）
• 閂鎖性能超過100 mA（JESD 78）

典型應用場景

• 5G基站控制板（例如，FPGA與處理器之間的數據匯流排隔離）
• 汽車儀表盤顯示模塊（例如，MCU連接LCD驅動器）
• 工業PLC I/O模塊（例如，3.3V邏輯橋接5V傳感器）
• 網絡路由器和交換機（例如，背板數據傳輸）
• 醫療成像設備（例如，數據採集系統）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74ALVC16409DL 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
