SN74ALVC164245KR TI Bus Transceiver | 56-BGAMICROSTARJUNIOR (7X4.5) | 16-bit, 2.3-3.6V

Product Overview

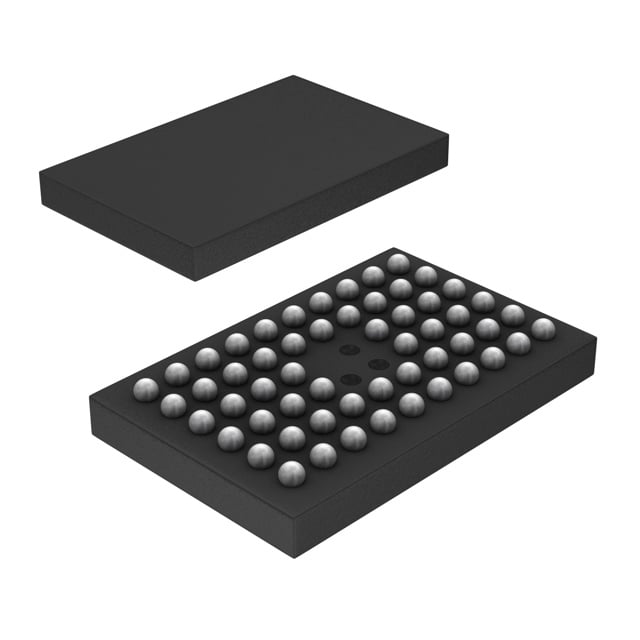

The SN74ALVC164245KR is a 16-bit (dual 8-bit) bus transceiver from Texas Instruments, designed for asynchronous communication between two data buses. It operates with a supply voltage range of 2.3 V to 3.6 V, making it suitable for low-voltage applications. The device features two separate 8-bit transceivers with independent direction control (DIR) and output-enable (OE) inputs. It is housed in a compact 56-ball BGA MICROSTAR JUNIOR package (7x4.5 mm), ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Bidirectional voltage translation between 2.3 V and 3.6 V buses
• Independent direction control for each 8-bit channel
• Low power consumption with typical ICC of 40 µA
• Bus-hold circuitry eliminates external pull-up resistors
• ESD protection exceeds JESD 22 (2000-V HBM, 1000-V CDM)
• Latch-up performance exceeds 100 mA per JESD 78

Target Applications

• 5G base stations: data bus interfacing between baseband processors and RF modules
• Automotive dashboard: communication between infotainment SoC and display controllers
• Industrial PLC: bridging between 3.3 V and 2.5 V logic domains
• Networking equipment: router backplane signal translation
• Medical imaging: data transfer in ultrasound systems
