SN74ALVC16501DL TI 18-bit Universal Bus Transceiver | 3.3V, 5V Tolerant

Product Overview

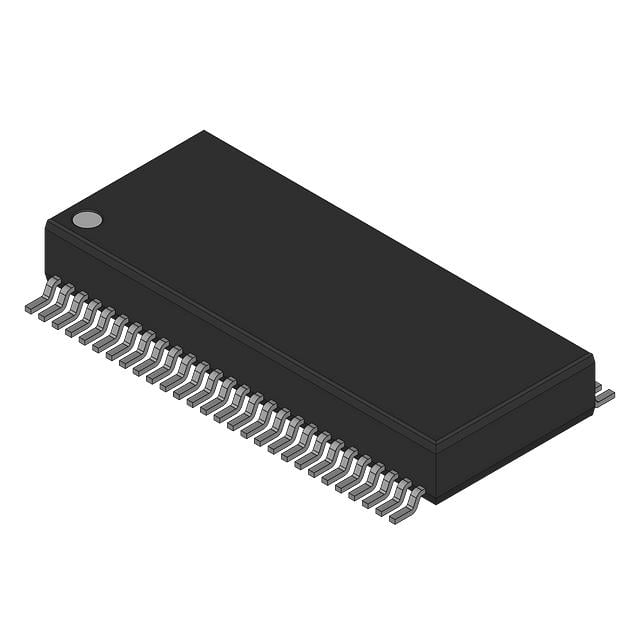

The SN74ALVC16501DL is an 18-bit universal bus transceiver from Texas Instruments, designed for asynchronous communication between data buses. It operates with a 3.3V supply voltage while being 5V tolerant on inputs, making it ideal for mixed-voltage systems. The device features two 18-bit input/output ports (A and B) with direction control (DIR) and output-enable (OE) pins. It supports bidirectional data flow with non-inverting logic and offers high drive capability (±24 mA at 3.3V). The SN74ALVC16501DL is available in a 56-pin SSOP package (DL suffix) and is characterized for operation from -40°C to +85°C.

Detailed Technical Specifications

Key Features

• 18-bit universal bus transceiver with direction control
• Bidirectional data flow between two buses
• 5V tolerant inputs for mixed-voltage systems
• High drive capability: ±24 mA at 3.3V
• Low propagation delay: 3.5 ns max at 3.3V
• Power-down high-impedance outputs
• Bus-hold circuitry eliminates need for external pull-up resistors
• ESD protection exceeds JESD 22 (2000V HBM, 1000V CDM)

Target Applications

• 5G base station control boards for data bus isolation
• Automotive dashboard display modules (e.g., instrument cluster)
• Industrial PLC I/O modules for signal buffering
• Telecommunications line cards for backplane interfacing
• Medical imaging equipment (e.g., ultrasound systems) for data transfer

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ALVC16501DL. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
