SN74ALVCH162525DGG TI Bus Transceiver | 24-bit, 2.3-3.6V, 3-State

Product Overview

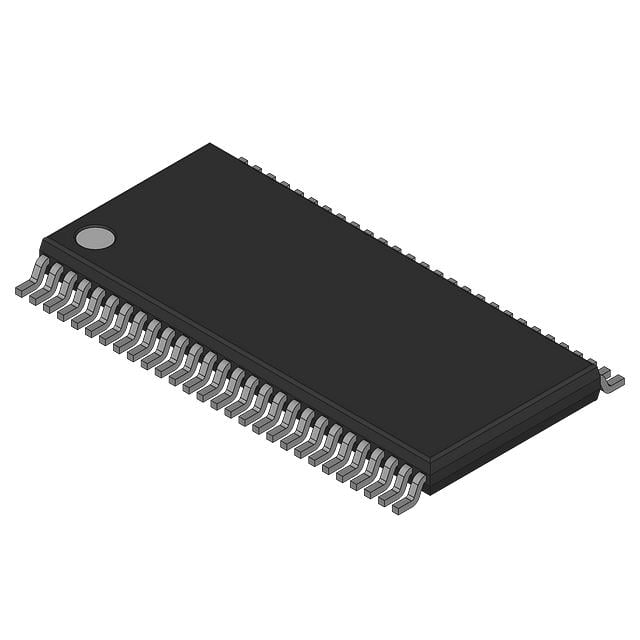

The SN74ALVCH162525DGG is a 24-bit universal bus transceiver from Texas Instruments, designed for asynchronous communication between data buses. It operates with a supply voltage range of 2.3 V to 3.6 V, making it suitable for low-voltage applications. The device features 3-state outputs and supports mixed-voltage operation, allowing seamless interfacing between different logic levels. Housed in a TSSOP-56 package, it offers high-speed performance with low power consumption.

Detailed Technical Specifications

Key Features

• 24-bit universal bus transceiver with direction control (DIR) and output enable (OE)
• Supports mixed-voltage operation (2.3 V to 3.6 V)
• High drive capability: ±24 mA at 3.3 V
• Low static power consumption (ICC = 40 µA max)
• Bus-hold circuitry eliminates need for external pull-up resistors
• ESD protection exceeds JESD 22 (2000-V HBM, 1000-V CDM)

Target Applications

• 5G base station control boards for data bus isolation
• Automotive dashboard display modules (e.g., infotainment systems)
• Industrial PLC (Programmable Logic Controller) I/O modules
• Network routers and switches for backplane communication
• Medical imaging equipment (e.g., MRI control units)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ALVCH162525DGG. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
