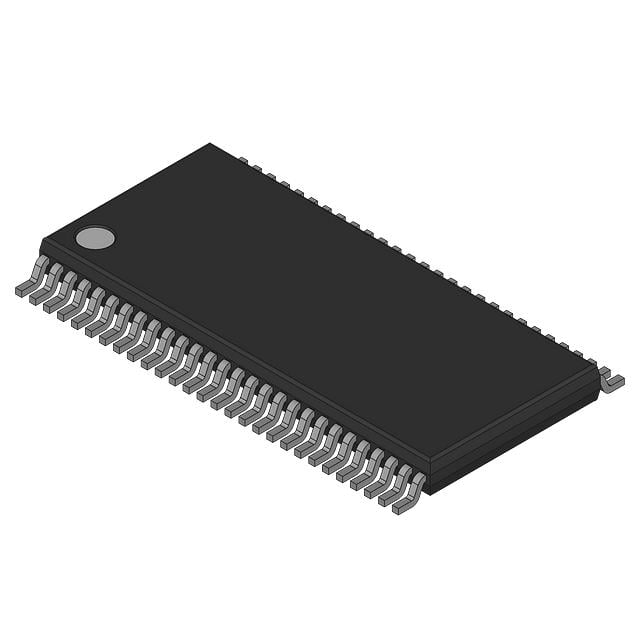

SN74ALVCH16260DGG TI 12-to-24-Bit Registered Bus Exchanger | 2.3-3.6V, 48-TSSOP

Product Overview

The SN74ALVCH16260DGG from Texas Instruments is a 12-bit to 24-bit registered bus exchanger designed for 2.3-V to 3.6-V VCC operation. It provides two 12-bit A buses and two 12-bit B buses, allowing data flow from A to B or B to A with storage capability. The device features non-inverting data paths, 3-state outputs, and bus-hold circuitry to eliminate the need for external pull-up resistors. Housed in a 48-pin TSSOP package, it is ideal for high-speed data routing and multiplexing in communication and computing systems.

Detailed Technical Specifications

Key Features

• 12-bit to 24-bit registered bus exchanger with storage
• Supports mixed-mode voltage operation (3.3V/2.5V/1.8V)
• Bus-hold circuitry eliminates external pull-up resistors
• Low power consumption with 40-μA maximum ICC
• High drive capability: ±24 mA at 3.3 V
• ESD protection exceeds JESD 22 (2000-V HBM, 1000-V CDM)
• Latch-up performance exceeds 100 mA per JESD 78
• Packaged in 48-pin TSSOP for space-constrained designs

Target Applications

• 5G base station control boards for data routing between FPGAs and processors
• Automotive dashboard display systems for multiplexing sensor data
• Industrial PLCs for I/O expansion and bus isolation
• Network switches and routers for address/data bus exchange
• Medical imaging equipment for high-speed data transfer

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ALVCH16260DGG. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74ALVCH16260DGG 是德州儀器推出的 12 位至 24 位寄存式總線交換器，工作電壓範圍為 2.3 V 至 3.6 V。它提供兩個 12 位 A 總線和兩個 12 位 B 總線，支持數據從 A 到 B 或 B 到 A 的傳輸並具有存儲功能。器件具有同相數據路徑、三態輸出和總線保持電路，無需外部上拉電阻。採用 48 引腳 TSSOP 封裝，適用於通信和計算系統中的高速數據路由與多路復用。

詳細技術參數

核心特性

• 12 位至 24 位寄存式總線交換器，帶存儲功能
• 支持混合電壓操作 (3.3V/2.5V/1.8V)
• 總線保持電路無需外部上拉電阻
• 低功耗，最大 ICC 僅 40 μA
• 高驅動能力：±24 mA (3.3 V)
• ESD 保護超過 JESD 22 標準 (2000-V HBM, 1000-V CDM)
• 閂鎖性能超過 100 mA (JESD 78)
• 採用 48 引腳 TSSOP 封裝，節省空間

典型應用場景

• 5G 基站控制板，用於 FPGA 與處理器之間的數據路由
• 汽車儀表盤顯示系統，用於傳感器數據多路復用
• 工業 PLC，用於 I/O 擴展和總線隔離
• 網絡交換機和路由器，用於地址/數據總線交換
• 醫療成像設備，用於高速數據傳輸

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74ALVCH16260DGG 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
