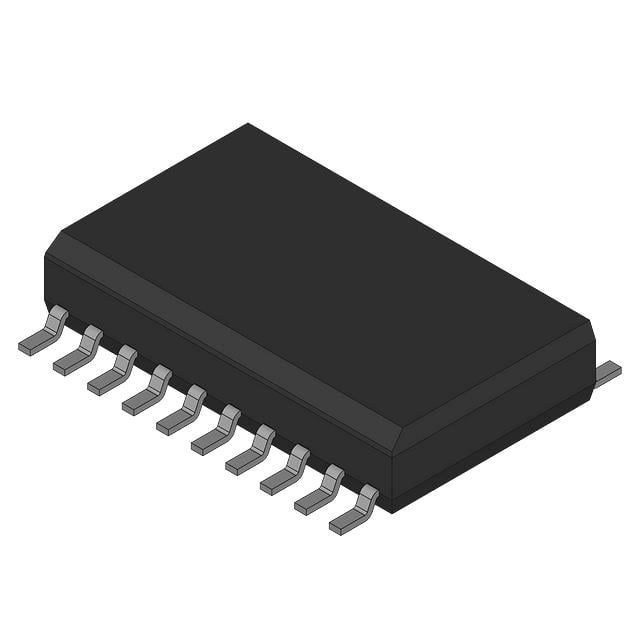

SN74AS763DW TI Bus Transceiver | 8-bit, Non-Inverting, 3-State

Product Overview

The SN74AS763DW is a high-performance 8-bit bus transceiver from Texas Instruments, designed for bidirectional asynchronous communication between data buses. It features non-inverting outputs and 3-state outputs for bus-oriented applications. Operating from a 4.5V to 5.5V supply, it delivers fast propagation delays (typical 6 ns) and high drive capability (up to 64 mA sink/source). The device is housed in a 20-pin SOIC package (DW), suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• Bidirectional bus transceiver with 8-bit non-inverting data paths
• 3-state outputs for bus isolation
• High drive capability: ±64 mA at 5V
• Fast propagation delay: 6 ns typical
• Low power consumption: 100 mW typical
• Input hysteresis for noise immunity
• Compatible with TTL and CMOS logic levels
• Industry-standard 20-pin SOIC package

Target Applications

• 5G base station control boards for data bus isolation
• Automotive dashboard display modules (e.g., instrument cluster)
• Industrial PLC (Programmable Logic Controller) I/O modules
• Telecommunications switching equipment
• Memory interface for embedded systems
• Bus arbitration in multi-processor systems
