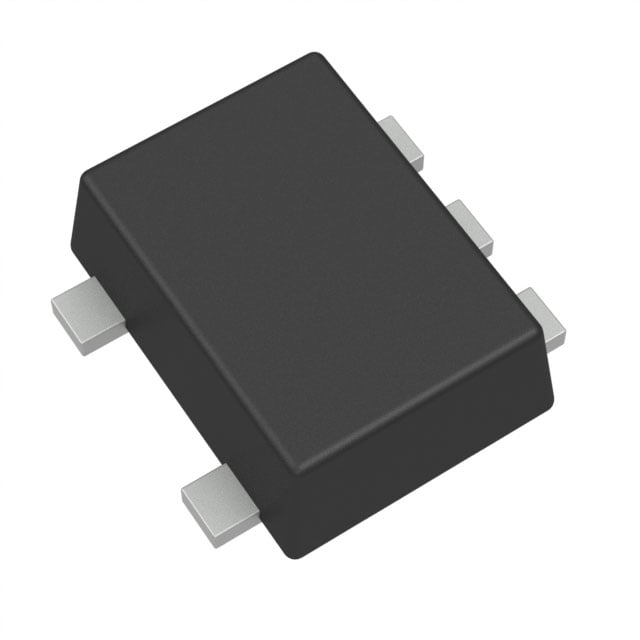

SN74AUC1G08DRLR TI Single 2-Input AND Gate | SOT-5 | 0.8V to 2.7V, 1.9ns

Product Overview

The SN74AUC1G08DRLR is a single 2-input positive-AND gate from Texas Instruments, designed for ultra-low-voltage and low-power applications. It operates over a wide supply voltage range of 0.8V to 2.7V, making it ideal for battery-powered and portable devices. The device is fabricated using advanced AUC (Advanced Ultra-low-power CMOS) technology, providing high speed with minimal power consumption. Housed in a compact SOT-5 package, it is suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• Ultra-low power consumption with ICC of 10µA max
• High speed with propagation delay of 1.9ns at 1.8V
• Wide supply voltage range: 0.8V to 2.7V
• Inputs accept voltages up to 2.7V independent of VCC
• Low noise: VOLP (output ground bounce) typically <0.8V at 1.8V
• ESD protection exceeds JESD 22 (2000V HBM, 1000V CDM)
• Latch-up performance exceeds 100mA per JESD 78, Class II

Target Applications

• 5G base station control logic: Used in power management and signal routing for remote radio units (RRUs)
• Automotive dashboard displays: Logic gating for display driver interfaces in infotainment systems
• Portable medical devices: Low-power AND gate for sensor signal conditioning in glucose monitors
• IoT edge nodes: Logic functions in battery-powered sensors for smart home automation
• Wearable electronics: Ultra-low voltage operation for fitness trackers and smartwatches

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AUC1G08DRLR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74AUC1G08DRLR 是德州儀器（TI）推出的一款單路2輸入正與門，專為超低電壓和低功耗應用設計。其工作電源電壓範圍為0.8V至2.7V，非常適合電池供電和便攜式設備。該器件採用先進的AUC（高級超低功耗CMOS）技術，在極低功耗下提供高速性能。採用緊湊的SOT-5封裝，適用於空間受限的設計。

詳細技術參數

核心特性

• 超低功耗，ICC 最大10µA
• 高速性能，1.8V時傳播延遲1.9ns
• 寬電源電壓範圍：0.8V至2.7V
• 輸入電壓可達2.7V，與VCC無關
• 低噪聲：1.8V時VOLP（輸出地彈）典型值<0.8V
• ESD保護超過JESD 22（2000V HBM，1000V CDM）
• 閂鎖性能超過100mA，符合JESD 78 Class II

典型應用場景

• 5G基站控制邏輯：用於遠程射頻單元（RRU）的電源管理和信號路由
• 汽車儀表盤顯示：信息娛樂系統中顯示驅動接口的邏輯門控
• 便攜式醫療設備：血糖監測儀中傳感器信號調理的低功耗與門
• IoT邊緣節點：智能家居自動化中電池供電傳感器的邏輯功能
• 可穿戴電子設備：健身追蹤器和智能手錶的超低電壓操作

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74AUC1G08DRLR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
