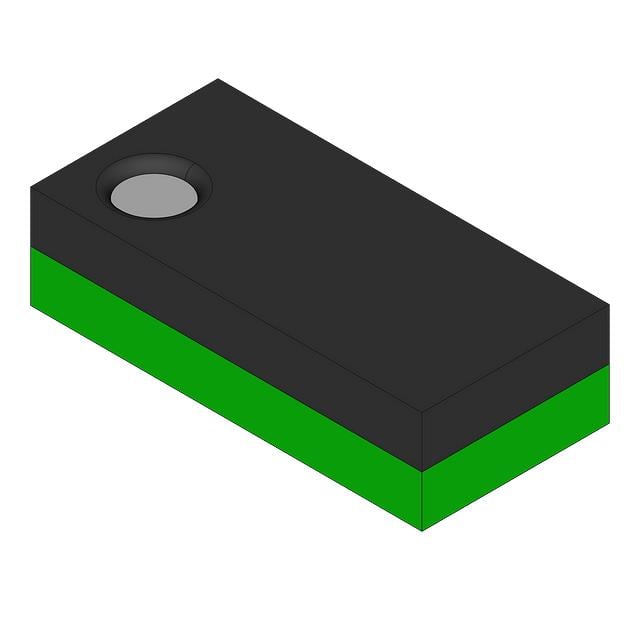

SN74AUC2G32YZPRB TI Logic Gates | 0.8V-2.7V | Dual 2-Input OR Gate

Product Overview

The SN74AUC2G32YZPRB is a dual 2-input positive-OR gate from Texas Instruments' AUC (Advanced Ultra-Low-Voltage CMOS) family. It is designed for ultra-low-voltage operation (0.8V to 2.7V) while maintaining high speed and low power consumption. The device is available in a tiny 6-pin DSBGA package (YZP), making it ideal for space-constrained applications. It performs the Boolean function Y = A + B in positive logic.

Detailed Technical Specifications

Key Features

• Ultra-low-voltage operation: 0.8V to 2.7V
• High speed: tpd 2.2 ns at 1.8V
• Low power consumption: 10 µA max ICC
• ±9 mA output drive at 1.8V
• Latch-up performance exceeds 100 mA per JESD 78, Class II
• ESD protection exceeds JESD 22: 2000V HBM, 1000V CDM
• Available in ultra-small DSBGA package (0.8mm × 1.2mm)

Target Applications

The SN74AUC2G32YZPRB is suitable for a wide range of low-voltage, high-speed logic applications. Specific examples include:

• 5G base station control logic: Used for signal gating and combining in power management and interface circuits.
• Automotive dashboard displays: Logic OR function for combining sensor inputs or control signals in low-voltage infotainment systems.
• Portable medical devices: Battery-powered equipment requiring ultra-low-power logic.
• IoT edge nodes: Low-voltage logic for sensor data aggregation and communication interfaces.
• Smartphones and tablets: Space-constrained designs needing high-speed logic in small packages.
