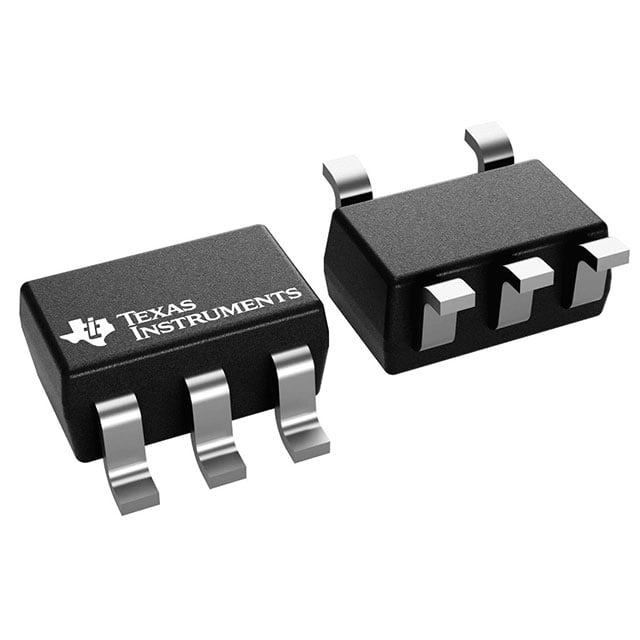

SN74AUP1G00DCKR TI Logic Gate | SC-70-5 | 0.8V-3.6V, 4mA

Product Overview

The SN74AUP1G00DCKR is a single 2-input positive-NAND gate from Texas Instruments' advanced ultra-low-power (AUP) family. It operates over a wide supply voltage range of 0.8V to 3.6V, making it ideal for battery-powered and portable applications. The device is available in a compact SC-70-5 package, offering space-saving benefits for dense PCB layouts. With a typical propagation delay of 3.8ns at 3.3V, it provides high-speed performance while maintaining ultra-low static power consumption (0.9µA max). The SN74AUP1G00DCKR is fully specified for partial-power-down applications using Ioff circuitry, which disables the output when VCC is 0V, preventing damaging backflow current.

Detailed Technical Specifications

Key Features

• Ultra-low static power consumption: 0.9µA max
• Wide operating voltage range: 0.8V to 3.6V
• High drive capability: ±4mA at 3V
• Ioff partial-power-down mode prevents backflow current
• Schmitt-trigger action at all inputs for noise immunity
• ESD protection exceeds JESD 22 (2000V HBM, 1000V CDM)
• Latch-up performance exceeds 100mA per JESD 78 Class II
• Available in space-saving SC-70-5 package

Target Applications

• 5G base station control logic: Used for signal gating in power management units of remote radio units (RRUs).
• Automotive dashboard: Implements logic functions in infotainment and cluster systems, such as button debounce and indicator control.
• Portable medical devices: Battery-operated patient monitors and glucose meters benefit from ultra-low power.
• IoT sensor nodes: Edge devices requiring minimal power consumption for long battery life.
• Wearable electronics: Smartwatches and fitness trackers where space and power are critical.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AUP1G00DCKR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
