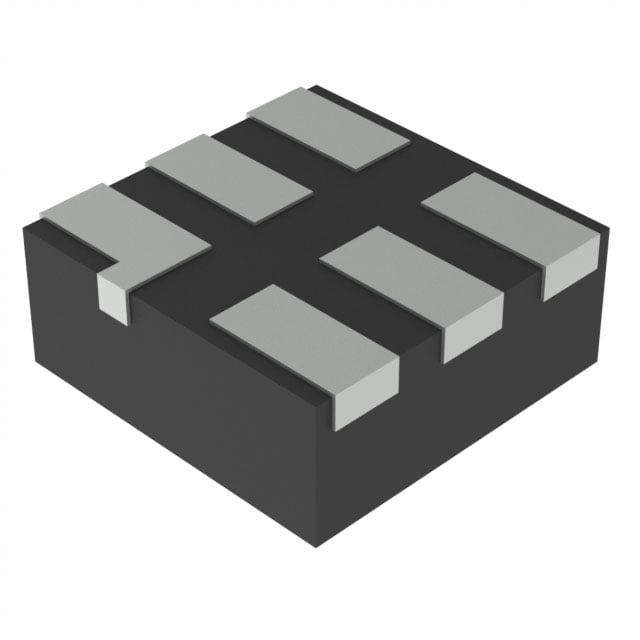

SN74AUP1G04DSF2 TI Inverter | 6-SON (1x1) | 0.8V-3.6V, 4mA

Product Overview

The SN74AUP1G04DSF2 is a single inverter gate from Texas Instruments' advanced ultra-low-power (AUP) family. It operates over a wide supply voltage range of 0.8V to 3.6V, making it ideal for battery-powered and portable applications. The device is housed in a compact 6-SON (1x1 mm) package, offering excellent space savings for dense PCB layouts. It features a typical propagation delay of 4.3 ns at 3.3V and consumes extremely low static power, with a maximum quiescent current of 0.9 µA. The SN74AUP1G04DSF2 is fully specified for partial-power-down applications using Ioff circuitry, which disables the output when VCC is 0V, preventing damaging backflow current.

Detailed Technical Specifications

Key Features

• Ultra-low static power consumption: 0.9 µA max
• Wide supply voltage range: 0.8V to 3.6V
• High noise immunity: VOH/VOL at 80% of VCC
• Ioff partial-power-down mode prevents backflow current
• Small 6-SON (1x1 mm) package for space-constrained designs
• ESD protection exceeds JESD 22 (2 kV HBM)
• Latch-up performance exceeds 100 mA per JESD 78

Target Applications

The SN74AUP1G04DSF2 is suitable for a wide range of applications, including:

• 5G base station control logic: signal inversion in power management and interface circuits
• Automotive dashboard displays: level shifting and signal conditioning for low-voltage microcontrollers
• Portable medical devices: battery-powered monitoring equipment requiring low power
• IoT sensors: edge nodes with strict power budgets
• Wearable electronics: smartwatches and fitness trackers
• Smartphones and tablets: power sequencing and GPIO expansion

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AUP1G04DSF2. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
